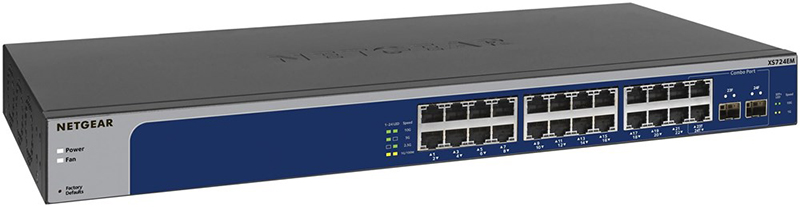

NETGEAR XS724EM
24-Port 10-Gigabit/Multi-Gigabit Ethernet Smart Managed Plus Switch
Our Price: Request a Quote
More pricing below, click here!
Please Note: All Prices are Inclusive of GST
Overview:
Unlock your Network Potential with 10-Gigabit/ Multi-Gigabit 5-Speed Networking Switches
Revolutionary 5-speed 10-Gigabit/Multi-Gigabit technology built in the NETGEAR multi-speed switches allows your devices to speed past the Gigabit barrier.
With the growth of virtualization, flash Storage, 4K videos , video streaming and IP surveillance, SMB networks need to extend beyond 1 Gigabit barrier. The 10-Gigabit/Multi-Gigabit Smart Managed Plus series from NETGEAR presents the right solution for this requirement; delivering unprecedented 10-Gigabit/Multi-Gigabit bandwith at an affordable cost.
Each port automatically detects which speed is needed by the connected device and provides the adequate speed. As opposed to regular 10-Gigabit switches that will only provide 1-Gigabit connectivity to any device that require less than 10-Gigabit, the XS512EM and XS724EM gives the exact speed required, no downgrade. Also, the new NETGEAR Multi-speed switch ports can be connected with regular Cat5E Ethernet cables, without the need to upgrade to Cat6/Cat6A wiring, therefore reducing wiring costs and hassle.
Highlights:
Hardware Highlights
- 5-speed Networking : - XS512EM-12-port 10-Gigabit/Multi-Gigabit - XS724EM-24-port 10-Gigabit/Multi-Gigabit
- 2 -Port SFP+ (combo) for fiber uplinks
- Rack-mount or Desktop
- Internal power supply to eliminate power brick
- Active fans for whisper quiet operation
- 50°C Maximum Operating Temperature
- Compact Small Form Factor (XS512EM)
Software Highlights
- VLAN support for traffic segmentation
- Quality of Service (QoS) for traffic prioritization
- Auto “denial-of-service” (DoS) prevention
- Link Aggregation to add redundancy and increase your network speed (Static LAC and LACP supported)
- Loop prevention and broadcast storm controls
- IGMP snooping v1, v2 and v3 support for multicast optimization
- Rate limiting for better bandwidth allocation
- Port mirroring for network monitoring
- Jumbo frame support
- Energy Efficient Ethernet (IEEE802.3az) support for maximum power savings
- Troubleshoot connection issues via cable test
Industry leading warranty
- LIFETIME 24/7 Technical Support
- LIFETIME Hardware Warranty*
* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorised reseller, and modifications to product may void the warranty; covers hardware, fans, and internal power supplies - not software or external power supplies; see http://www.netgear.com/about/warranty/ for details. Lifetime technical support includes basic phone support for 90 days from purchase date and lifetime online chat support when purchased from a NETGEAR authorised reseller.
** The NETGEAR OnCall 24x7 contract provides unlimited phone and email technical support for your networking product. For ProSAFE products purchased prior to 06/2014, also includes next business-day hardware replacement.
Features and Benefits:
| Hardware Features: | Benefits: |
|---|---|
| 10-Gigabit/Multi-Gigabit support | Each copper interface supports 100M/1G/2.5G/5G/10G giving the exact speed required to any device regardless of the cable that's been used. |
| Active Fans | Active Fans make the XS512EM and XS724EM silent switches, well below offices ambient background noise. |
| 10GBASE-X SFP+ ports | Providing flexibility to uplink to 10G-capable core or aggregation switches that support fiber links. Backward compatible to Gigabit fiber. Support copper or fiber modules. |
| Rackmount or desktop | Flexible deployment for either rackmount or desktop placement. |
| Software Features: | Benefits: |
| Port-based and 802.1Q-based VLANs | Segment network into smaller groups for more secure and efficient use of network resources. |
Comprehensive QoS features:
|
Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video. Ingress and egress rate limiting allows for bandwidth shaping for mitigating network resources constraints or for optimizing guest access bandwidth on the network. |
| IGMP Snooping | For improved network efficiency on delivering multicast traffic. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router. |
| Link Aggregation ( Static LAG and LACP) | Build up bigger bandwidth to support aggregated uplink/downlink traffic or to provide redundant link(s) using Static Manual LAGs or LACP. |
| Voice VLAN | The feature enables auto assignment of voice traffic (based on OUI) to a special VLAN (AKA Voice VLAN); allowing the assignment of special QoS parameters to that traffic, giving it high priority services. Port has to be MANUALLY assigned to be a member of the Voice VLAN. |
| Loop detection and auto DoS prevention | Detect accidental network loops and protect against DoS attacks. |
| Port Mirroring | For better and quicker network diagnostics and troubleshooting. |
| Energy Efficient Ethernet (IEEE 802.3az) | For maximum power savings and reduced energy costs. |
| Cable Test | Easily identify bad Ethernet cables. |
At a Glance:
| Hardware at a glance | |||||||
|---|---|---|---|---|---|---|---|
| Model name | Form-Factor | 10-Gig/Multi-Gig Copper Ports | Internal Power Supply | 10G SFP+ Ports | LED's | Case Material | Fans |
| XS512EM | Rackmount/Desktop | 12 | Yes | 2 (shared) | Power, Port Link/Speed/Activity/Fan | Metal | Active Fan |
| XS724EM | Rackmount/Desktop | 24 | Yes | 2 (shared) | Power, Port Link/Speed/Activity | Metal | Active Fan |
| Performance at a glance | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model name | Fabric | Packet Buffer | Latency (Max Connection Speed) | VLANS | MAC Address Table | Priority Queues | Multicast IGMP Group | Packet Forwarding Rate (64 byte) | Jumbo Frames (bytes) |
| XS512EM | 240 Gbps line-rate | 3MB | 10G : AVG 4.3us 5G: AVG 5.2us 2.5G : AVG 7.1us 1G : AVG 3.76us 100M: AVG 13.63us |
N/A | 32K Entries (dynamic) | 8 (WRR) | 128 | 178.6 Mfps | up to 9K |
| XS724EM | 480Gbps line-rate | 3MB | I10G : 4.16us 5G: AVG 5.3us 2.5G : AVG 7.53us 1G : AVG 3.77us 100M: AVG 13.4us |
N/A | 32K Entries (dynamic) | 8 (WRR) | 128 | 240 Mfps | up to 9K |
| Software at a glance | |||||||
|---|---|---|---|---|---|---|---|
| Management | VLANs | QoS | Port Trunking | IP Multicast Filtering | Rate Limiting & Priority Queueing | Jumbo Frame Support | IEEE (802.3az) Energy Effiecient Ethernet |
| Web Browser-based GUI (HTTP), PC-Based ProSAFE Plus Utility (PSU) | Port-based, IEEE 802.1Q-based, Voice | Port-based, IEEE 802.1p/DSCP-based | Static LAG and LACP | IGMP Snooping | Yes | Yes | Yes |
Model Comparison:
| Technical Specifications | ||
|---|---|---|
| Models: | XS512EM | XS724EM |
| Product Specifications | ||
| 100M/1G/2.5G/5G/10G RJ-45 copper ports | 12 | 24 |
| 10G SFP+ ports | 2 | 2 (shared) |
| Form Factor | Desktop/Rackmount | Desktop/Rackmount |
| Performance Specifications | ||
| Packet buffer memory (Dynamically shared across only used ports) | 3MB | 3MB |
| Forwarding modes | Store-and-forward | Store-and-forward |
| Bandwidth | 240 Gbps | 480 Gbps |
| MAC Address database size (48-bit MAC addresses) | 32K | 32K |
| Packet forwarding rate (64 byte packet size) (Mfps or Mpps) | 178.6 | 240 |
| Speed / Latency | 10G : AVG 4.3us 5G: AVG 5.2us 2.5G : AVG 7.1us 1G : AVG 3.76us 100M: AVG 13.63us |
10G : 4.16us 5G: AVG 5.3us 2.5G : AVG 7.53us 1G : AVG 3.77us 100M: AVG 13.4us |
| Jumbo frame support | Up to 9K packet size | Up to 9K packet size |
| Acoustic noise level @ 25°C (dBA) (ANSI-S10.12) | Idle : 29.13dB@25dC/ Full load :40.85dB@50dC |
Idle : 35.91dB@25dC Full load :56.87dB@50dC |
| Mean Time Between Failures (MTBF) @ 25° C | 1,113,477Hrs | 830,493Hrs |
| L2 Services - VLANS | ||
| VLAN (# Supported) | 64 | 64 |
| Port-based VLANs (physical) | Yes | Yes |
| IEEE 802.1Q VLAN Tagging | Yes | Yes |
| L2 Services - Availability | ||
| Broadcast, multicast, unknown unicast storm control | Yes | Yes |
| Static Manual LAGs (Port Trunking) | Yes | Yes |
| LACP | Yes | Yes |
| IEEE 802.3x (full duplex and flow control) | Yes | Yes |
| L2 Services - Multicast Filtering | ||
| Models: | XS512EM | XS724EM |
| IGMP snooping (v1, v2, and v3) | Yes | Yes |
| IGMP snooping querier | No | No |
| Block unknown multicast | Yes | Yes |
| Static multicast router port | Yes | Yes |
| L3 Services - DHCP | ||
| DHCP client | Yes | Yes |
| Link Aggregation | ||
| Static Manual LAGs (Port Trunking) | Yes | Yes |
| LACP | Yes | Yes |
| # of Static LAGs / # of members in each LAG | 8 LAGs with max 8 members in each LAG | 8 LAGs with max 8 members in each LAG |
| Quality of Service (QoS) | ||
| Models: | XS512EM | XS724EM |
| Port-based rate limiting | Ingress and egress | Ingress and egress |
| Port-based QoS | Yes | Yes |
| IEEE 802.1p COS | Yes | Yes |
| IPv4 DSCP | Yes | Yes |
| IPv4 ToS | Yes | Yes |
| TCP/UDP-based | No | No |
| Weighted Round Robin (WRR) | Yes | Yes |
| Strict priority queue technology | No | No |
| IEEE Standards Supports | ||
| IEEE Standards Supports |
|
|
| Management | ||
| Models: | XS512EM | XS724EM |
| Password management | Yes | Yes |
| Web browser-based graphical user interface (GUI) | Yes | Yes |
| ProSAFE Plus Configuration Utility (PCU) for multi-switch management | Yes | Yes |
| Firmware upgrade | TFTP (Plus Utility) / HTTP (Web GUI) | TFTP (Plus Utility) / HTTP (Web GUI) |
| Config file transfers (backup, restore) | Plus Utility or Web GUI | Plus Utility or Web GUI |
| Firmware upgrade through Plus Utility (TFTP) | Yes | Yes |
| Config download (to switch) through Plus Utility | Yes | Yes |
| Config upload (to server) through Plus Utility | Yes | Yes |
| Firmware upgrade through web GUI (HTTP) | Yes | Yes |
| Config download (to switch) through web GUI (HTTP) | Yes | Yes |
| Config upload (to server) through web GUI (HTTP) | Yes | Yes |
| Cable test utility | Yes | Yes |
| LEDs | ||
| Per port | Speed, Link, Activity | Speed, Link, Activity |
| Per device | Power, Fan | Power, Fan |
| Physical Specifications | ||
| Models: | XS512EM | XS724EM |
| Dimensions | 328 x 204 x 43 mm (12.9 x 8.0 x 1.7 in) | 440 x 204 x 43 mm (17.3 x 8.0 x 1.7 in) |
| Weight | 2.51kg (5.54 lb) | 3.72kg (8.21 lb) |
| Power Consumption | ||
| Power Supply | Fixed internal PSU, 100-240VAC, 50-60Hz, 2.5A max Power cord localized to country of sale |
Fixed internal PSU, 100-240VAC, 50-60Hz, 2A max Power cord localized to country of sale |
| Max power (worst case, all ports used, line-rate traffic) (Watts) | 76.56W | 150.52W |
| Min power (link-down standby) (Watts) | 36.5W | 59.27W |
| Heat Dissipation (max and min) (BTU/hr) | Max: 261.38 BTU/hr Min: 164.2 BTU/hr |
Max: 513.88 BTU/hr Min: 202.35 BTU/hr |
| Energy Efficient Ethernet (EEE) IEEE 802.3az | Yes | Yes |
| Short cable power reduction | No | No |
| Auto power-down | No | No |
| Fan(s) | 2 | 3 |
| Environmental Specifications | ||
| Operating Temperature | 0° to 50°C (32° to 122°F) | |
| Operating Humidity | 90% maximum relative humidity (RH), non-condensing | |
| Storage Temperature | -20° to 70°C (- 4° to 158°F) | |
| Storage Humidity | 95% maximum relative humidity (RH), non-condensing | |
| Electromagnetic Emissions and Immunity | ||
| Certifications |
|
|
| Electromagnetic Compliance (Class A or B) | Class A | |
| Safety | ||
| Certifications |
|
|
| Warranty and Support | ||
| ProSAFE Lifetime Warranty | Included, Lifetime* | |
| Lifetime 24x7 Online Technical Support* | Included, Lifetime* | |
| Lifetime Next-Business-Day (NBD) Replacement | Included, Lifetime* | |
| ProSUPPORT OnCall 24x7, Category 2** Service Packs | Category 1: PMB0311 (1 Year.) PMB0331 (3 Years.) PMB0351 (5 Years.) |
|
| Package Contents | ||
| All Models |
|
|
* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorised reseller, and modifications to product may void the warranty; covers hardware, fans, and internal power supplies - not software or external power supplies; see http://www.netgear.com/about/warranty/ for details. Lifetime technical support includes basic phone support for 90 days from purchase date and lifetime online chat support when purchased from a NETGEAR authorised reseller.
** The NETGEAR OnCall 24x7 contract provides unlimited phone and email technical support for your networking product. For ProSAFE products purchased prior to 06/2014, also includes next business-day hardware replacement.
Network Diagram:
XS512EM/XS724EM in a Business Environment
Cables and Speeds
The following table describes the network cables that you can use for the switch connections and the speeds that the cables can support, up to 100 meters (328 feet).
| Speed | Cable Type |
|---|---|
| 100 Mbps | Category 5 (Cat 5) or higher rated |
| 1 Gbps, 2.5 Gbps, or 5 Gbps | Category 5e (Cat 5e) or higher rated |
| 10 Gbps | Category 6A (Cat 6A) or higher rated |
Note: For speeds of 10 Gbps, if the cable length is shorter than 55 meters (180 feet), you can use a Category 6 (Cat 6) cable.
Why the NETGEAR 10-Gig/Multi-Gig Switches are ideal for SMB?
- 5-speed Networking Expand your network instantly and give your devices either 100Mb, 1, 2.5, 5 or 10-Gigabit automatically,
- Security to protect the SMB networks for possible threats thanks to Auto DoS and Storm Control.
- Visibility to identify any possible cable issues or abnormal traffic behavior with cable health test and port statistics.
- Enhanced Control to improve your network performance with VLAN, QoS and Multicast Support.
- Reliability to assure that the SMB networks are up and running we introduced Link Aggregation and Loop Prevention to minimize possible downtimes.
Documentation:
Download the NETGEAR 10-Gigabit/Multi-Gigabit Ethernet Smart Managed Plus Switches Datasheet (PDF).
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing and product availability subject to change without notice.
Our Price: Request a Quote
