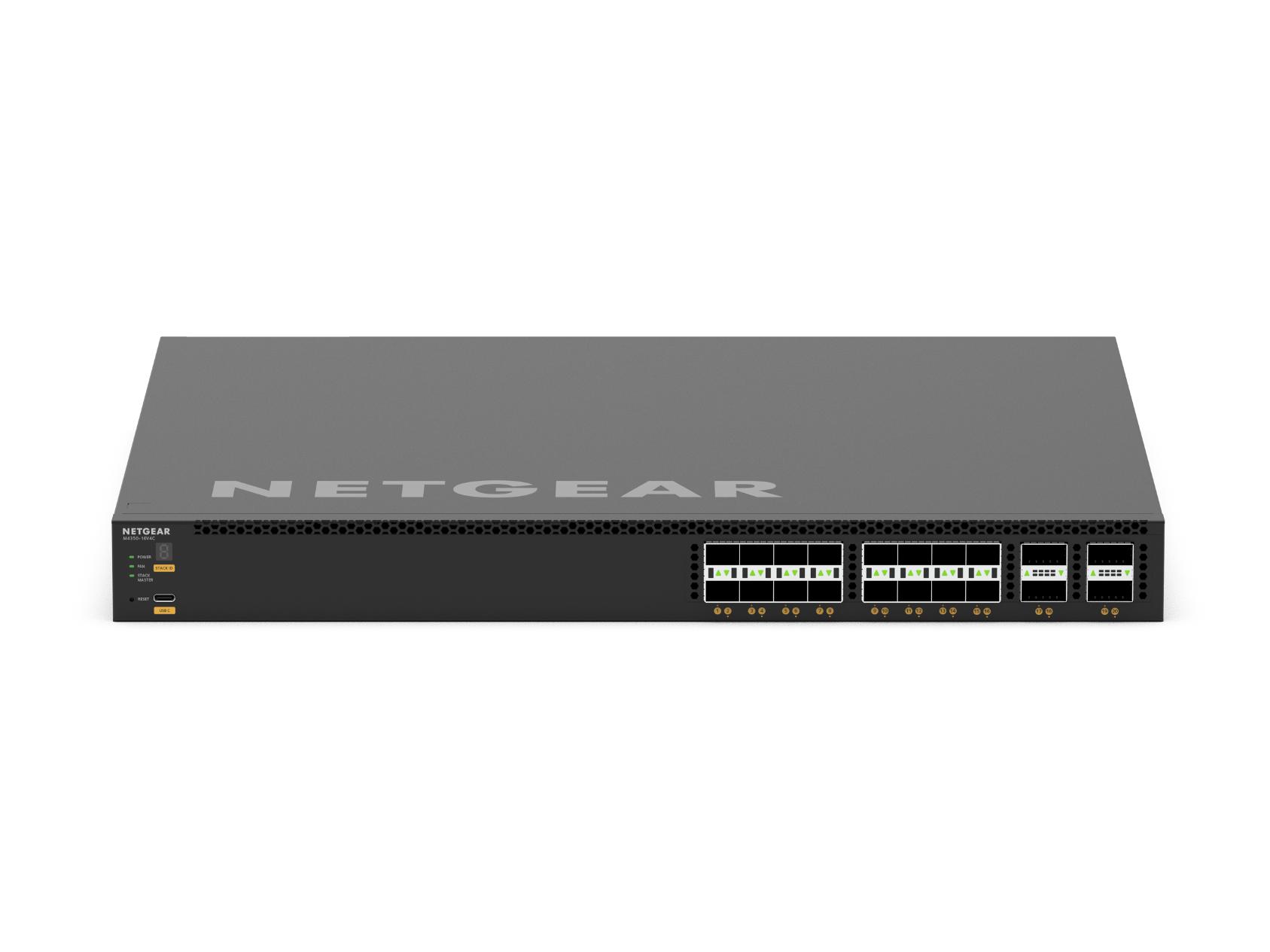

NETGEAR VSM4320C-100AJS
NETGEAR 20-PORT L3 STACK MANAGED SWITCH, SFP28(16), QSFP28(4)
Our Price: Request a Quote
More pricing below, click here!
Please Note: All Prices are Inclusive of GST
Overview:
Engineered and Certified for AV over IP

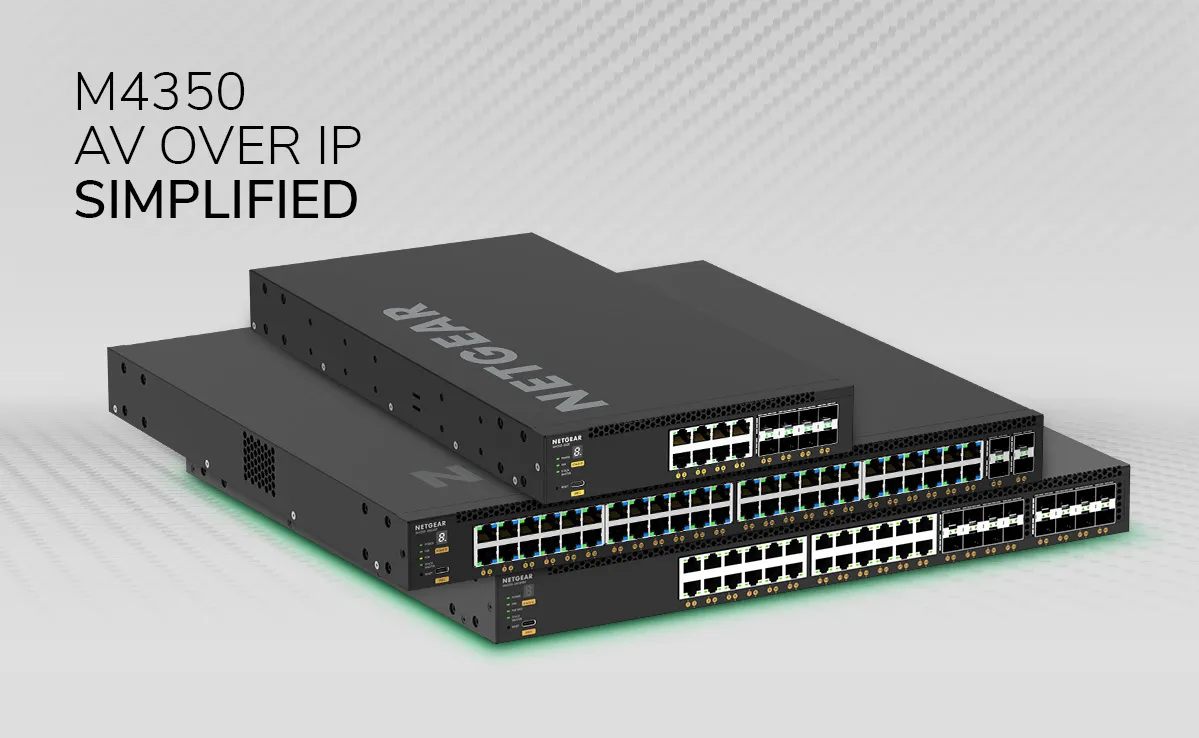

Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage™ Controller contain pre-configured profiles for all major audio, video, and lighting protocols.
Highlights
NETGEAR listens to and supports the Pro AV community
- IGMP Plus™ means AV-over-IP multicasting will work out of the box and not flood your network
- Auto-LAG and Auto-Trunk automatically configure the uplinks between multiple switches
- The Engage™ Controller manages all M4250, M4300, and M4350 switches for your AV installations
- NETGEAR ProAVDesign team tohelp with system design andimplementation toensure theproject will work
- AVB, Dante, Q-SYS, AES67, NVX, AMX, Q-SYS, NDI 4, NDI 5, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and many others!
- SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI
Enterprise-class hardware
- From 1G to 2.5G, to 10G, to 25G, to 100G always within 40cm (15.7in) depth
- Controlled thermal and acoustics (intelligent fans configurable in Quiet Mode to minimize noise, or Cool Mode to minimize heat)
Other IT use cases
- Edge to core stackable platform, from 1 Gigabit to 100 Gigabit for midsize organizations
- Non-stop forwarding (NSF) provides advanced High Availability (HA) with hitless failover across the stack
Industry standard management
- Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI)
- SNMP, sFlow and RSPAN - the entire feature set is available without license
Industry leading warranty
- NETGEAR M4350 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty*
- 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement
Features:
POWER AND THROUGHPUT
Edge to core stackable platform, from 1 Gigabit to 100
Gigabit, all within 15.75in (40cm) of depth.
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for rack mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4350 (and M4250) switches.

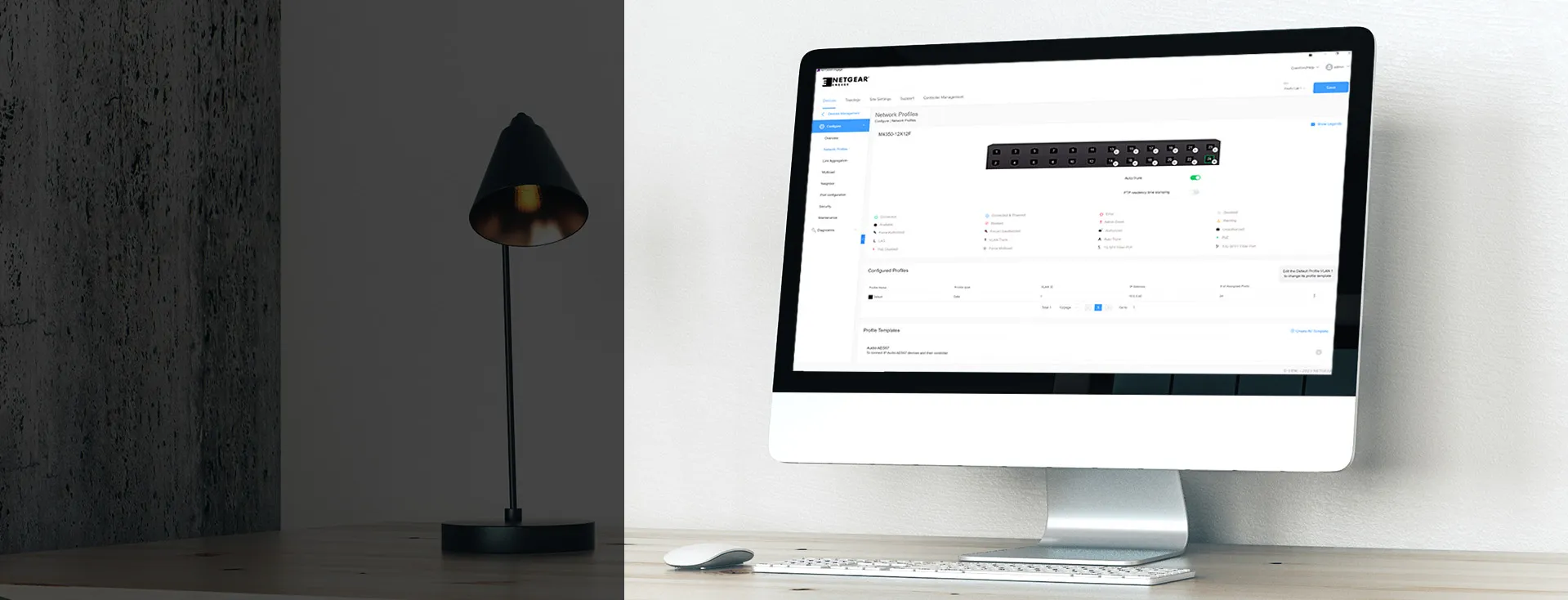

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there's little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

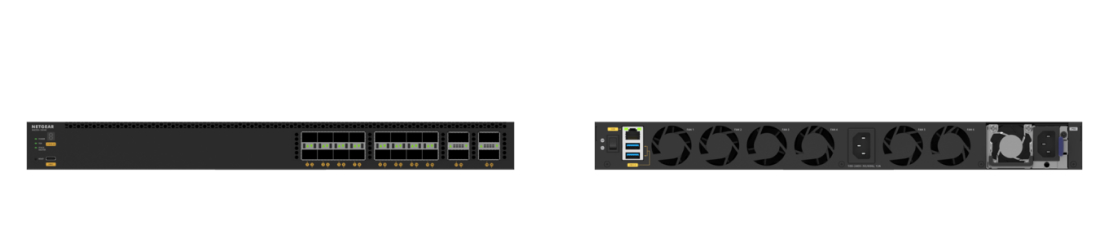

Specifications:
| NETGEAR VSM4320C-100AJS Specifications | |
|---|---|
| Technical Specification |
Width : 440mm
Depth : 400mm Height : 43.2mm Weight : 7.15kg (15.77lb) Primary Port Speed : 25 Gigabit Number of Ports : 20 (16 x 25G SFP28, 4 x 100G QSFP28) PoE Ports / Budget : N/A IGMP Support : Enhanced (NETGEAR IGMP Plus™) Jumbo Frame Support : Yes, up to 12kb AVB Support : Yes, included Acoustics : Quiet Mode 34.3dB@25ºC Power Consumption : 143.4W/450.28Btu/hr Standby without any port connection : 60.4W/189.66Btu/hr PSU Compatible Models : APS600Wv3 APS1200Wv2 APS2000Wv2 |
| Support & Warranty |
Warranty: This product is backed by a NETGEAR ProSAFE® Limited Lifetime Hardware Warranty. Phone and chat technical support provided for 90 days from purchase date. This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller, and covers unmodified hardware, fans and internal power supplies – not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only. |
Documentation:
Download the NETGEAR 20-PORT L3 STACK MANAGED SWITCH, SFP28(16), QSFP28(4) Datasheet (PDF).
Pricing Notes:
- All Prices are Inclusive of GST
- Pricing and product availability subject to change without notice.
