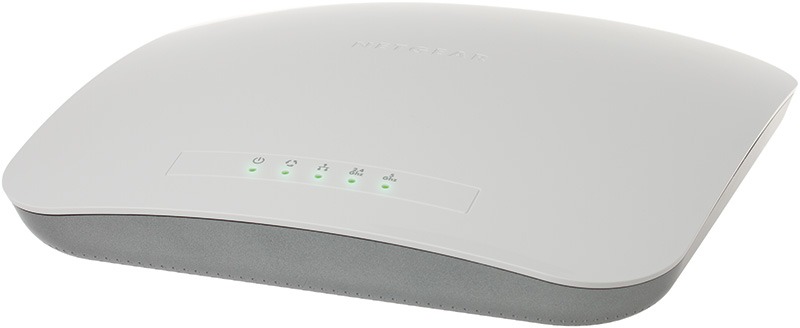

NETGEAR WNDAP620
ProSafe Dual Band Premium Wireless-N Access Point

NETGEAR WNDAP360

Netgear Products

NETGEAR Business Wireless

ProSafe WNDAP620 Dual Band Premium Wireless-N Access Point

#WNDAP620-100NAS
Our Price: Request a Quote

Get a Quote

More pricing below, click here!

Please Note: All Prices are Inclusive of GST

Overview:

Advanced Speed and Range with Comprehensive Internet Security

3 x 3 multiple-input, multiple-output (MIMO) with three spatial streams
Dual band selectable in 2.4 or 5 GHz radio band for maximum w ireless throughput
Stylish and elegant design with easy mounting options (e.g. ceiling, wall and desktop)
Backward compatibility with 802.11a, 802.11g and 802.11b network devices
Integrated Power over Ethernet (IEEE® 802.3af and 802.3at PoE) lowers deployment costs
Deploy wireless coverage over large areas with point-to-point and point-to-multipoint bridging via Wireless Distribution System (WDS)
Security features include WPA, WPA2, rogue AP detection and 802.1x with RADIUS support
Internal antennas factory-optimized for maximum RF performance
Advanced Security with Wireless Intrusion Detection (WIDS) and Wireless Intrusion Prevention (WIPS) support
802.11n Beamforming to improve range and maximizes data rates
Device-based QoS to provide differentiated service level agreement to each user and device type

Specifications:

ProSafe Wireless Access Point Comparison
Features	WNDAP660	WNDAP620	WNAP360	WNAP320
Frequency	2.4 GHz and 5 Ghz	2.4 GHz and 5.0 GHz	2.4 GHz and 5.0 GHz	2.4 GHz
Transmit x Receive Radio Chains	3 x 3	3 x 3	2 x 2	2 x 2
Maximum theoretical throughput	450 Mbps	450 Mbps	300 Mbps	300 Mbps
Power over Ethernet (PoE) IEEE 802.3af
PoE power consumption	10.51 Watts	10.51 Watts	10.75 Watts	5.8 Watts
Wireless Distribution System (WDS)
Repeater
Bridge point-to-point/multi-point
Simultaneous bridge & wireless client association
Separate bridge and access point
Client Mode
SNMP	v1, v2c	v1, v2c	v1, v2c	v1, v2c
Antenna	Two (2) Internal 5 dBi Three (3) reverse SMA connectors	Two (2) Internal 5 dBi Three (3) reverse SMA connectors	Two (2) Internal 5 dBi Two (2) reverse SMA connectors	Two (2) Internal 5 dBi Two (2) reverse SMA connectors
User support	Up to 128 users	Up to 128 users	Up to 50 users	Up to 64 users
Security
Wi-Fi Protected Access (WPA/WPA2), 802.11i
Multiple VPN pass-through support
MAC address filtering with access control lists-up to 256 users
802.1x RADIUS support with EAP TLS, TTLS, PEAP
Rogue AP detection
Block SSID Broadcast
Secure SSH Telnet
Secure Socket Layer (SSL)
Remote management login
Peer-to-peer blocking so users may not access another user's PC
MBSSID/VLAN Support	16/17	16/17	16/17	8/9
WPA Support (WPA2 - Enterprise, 802.11i)
User Interface
Browser-based Interface
Accepts accessory antennas
Easy ceiling mounting/wall mounting
WIDS
WIPS
Bandwidth Management
LLDP
Bandsteering

NETGEAR's ProSafe line of business networking products offers a wide array of easy-to-use, professional-grade switching, wireless, software and security solutions. Backed by a lifetime hardware warranty for the original purchaser , ProSafe products provide an abundance of intelligent, innovative and practical features, addressing the unique requirements of business networks.

Standards:

IEEE 802.11a 5GHz
IEEE 802.11g, IEEE 802.11b, 2.4GHz
IEEE 802.11n standard, 2.4GHz and 5GHz
WMM - Wireless MultiMedia prioritization
WDS- Wireless Distribution System
er over Ethernet (PoE) IEEE 802.3af and 802.3at

Physical Specifications:

Physical Dimensions (W x D x H): 253.75 x 253.76 x 54.76 mm (10.0 x 10.0 x 2.16 in)
Weight: 1.5 kg (3.31 lb)

Physical Interfaces:

One (1) 10/100/1000BASE-T Gigabit Ethernet (RJ-45) port with Auto Uplink™ (Auto MDI-X) with IEEE 802.3af Power over Ethernet (PoE) support
Power adapter: 12 VDC, 1.5A; plug is localized to country of sale
One (1) console port with RJ45 Interface
Three (3) reverse SMA antenna connectors
Five (5) LED: Power, Link/ACT, LAN, 2.4GHz, 5GHz

Security:

Wi-Fi Protected Access (WPA, WPA2)
Wired Equivalent Privacy (WEP) 64-bit, 128-bit, and 152-bit encryption
IEEE802.1x RADIUS authentication with EAP TLS, TTLS, PEAP
Wireless access control to identify authorised wireless network devices
MAC address authentication
VPN pass-through support
Secure SSH Telnet
Security Socket Layer (SSL) remote management login

Network Management:

Remote configuration and management through Web browser, SNMP or Telnet with command line interface (CLI)
SNMP management supports SNMP MIB I, MIB II, 802.11 MIB and proprietary confi guration MIB

Advanced Wireless Features:

Wireless Distribution System (WDS)
Bridge mode: Point-to-point wireless WDS mode
Bridge mode: Point-to-multipoint wireless WDS mode
Repeater mode
Adjustable Transmit Power Control (TPC) from 100 mW down to 0 mW

System Requirements:

2.4GHz/5GHz 802.11n specifi cation or 2.4GHz 802.11b/g wireless adapter or 5GHz 802.11a wireless adapter
Microsoft® Windows® Vista™, XP, 2000, 98, Me, Mac® OS, UNIX®, or Linux®
Internet Explorer® 6.0 or Mozilla Firefox 1.5
We recommend using this product with RangeMax Dual Band Wireless-N USB Adapter (WNDA3100)

Package Contents:

ProSafe® Premium Dual Band Wireless-N Access Point (WNDAP620)
Ethernet cable
Wall-mount kit
Installation guide
Resource CD
12V, 1A power supply
Warranty/support information card Warranty
Access Point: ProSafe Lifetime

Warranty:

Power Supply: 3-year Warranty
Access Point: ProSafe Lifetime Warranty

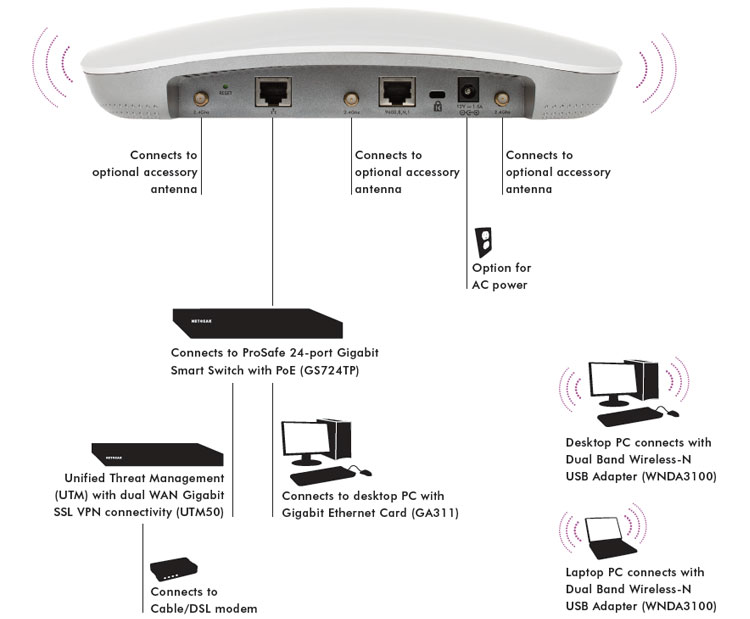

Diagram:

WNDAP620 Diagram

Documentation:

Download the NETGEAR WNDAP620 Data Sheet (PDF).
