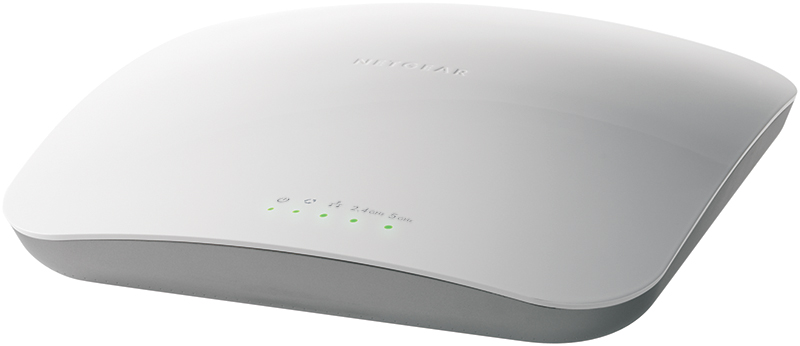

NETGEAR WNDAP360
ProSafe Dual Band Wireless-N Access Point
Sorry, this product is no longer available, replaced by the WAC720-100NAS.
More pricing below, click here!
Please Note: All Prices are Inclusive of GST
Overview:
Advanced Speed and Range with Comprehensive Internet Security
- Up to 15x the speed and 10x the coverage of 802.11a, 802.11g networks
- Stylish and elegant design with easy mounting options (e.g. ceiling, wall and desktop)
- Concurrent operation in 2.4GHz and 5GHz radio band for maximum wireless throughput
- Backward compatibility with 802.11a, 802.11g and 802.11b network devices
- Integrated Power over Ethernet (IEEE 802.3af PoE) lowers deployment costs
- Centralized management via wireless controller (WC7520) for large deployments
- Deploy wireless coverage over large areas with point-to-point and point-to-multipoint bridging via Wireless Distribution System (WDS)
- Security feature include WPA, WPA2, rogue AP detection and 802.1x with RADIUS support
- Easy mounting mechanism for quick wall or ceiling installation
- Internal antennas factory-optimized for maximum RF performance
- Antenna take-offs enable optional accessory antenna attachment for 2.4GHz operations
Specifications:
| ProSafe Dual Band Wireless-N Access Point | ||||
|---|---|---|---|---|
| Features | WNDAP360 | WNDAP350 | WNAP320 | WNAP210 |
| Frequency | 2.4 GHz and 5 Ghz | 2.4 GHz and 5.0 GHz | 2.4 GHz | 2.4 GHz |
| Maximum theoretical throughput | ||||
| Power over Ethernet (PoE) IEEE 802.3af | ||||
| PoE power consumption | 10.51 Watts | 10.75 Watts | 5.8 Watts | 6 Watts |
| Wireless Distribution System (WDS) | ||||
| Repeater | ||||
| Bridge point-to-point/multi-point | ||||
| Simultaneous bridge & wireless client association | ||||
| Separate bridge and access point | ||||
| Client Mode | ||||
| SNMP | v1, v2c | v1, v2c | v1, v2c | v1, v2c |
| Antenna | Two (2) Internal 5 dBi Two (2) reverse SMA connectors |
Two (2) Internal 5 dBi Two (2) reverse SMA connectors |
Two (2) Internal 5 dBi Two (2) reverse SMA connectors |
Two (2) Internal 5 dBi |
| User support | Up to 50 users | Up to 50 users | Up to 64 users | Up to 32 users |
| Security | ||||
| Wi-Fi Protected Access (WPA/WPA2), 802.11i | ||||
| Multiple VPN pass-through support | ||||
| MAC address filtering with access control lists-up to 256 users | ||||
| 802.1x RADIUS support with EAP TLS, TTLS, PEAP | ||||
| Rogue AP detection | ||||
| Block SSID Broadcast | ||||
| Secure SSH Telnet | ||||
| Secure Socket Layer (SSL) | ||||
| Remote management login | ||||
| Peer-to-peer blocking so users may not access another user's PC | ||||
| MBSSID/VLAN Support | 16/17 | 16/17 | 8/9 | 8/9 |
| WPA Support (WPA2 - Enterprise, 802.11i) | ||||
| User Interface | ||||
| Browser-based Interface | ||||
| Accepts accessory antennas | ||||
| Easy ceiling mounting/wall mounting | ||||
NETGEAR's ProSafe line of business networking products offers a wide array of easy-to-use, professional-grade switching, wireless, software and security solutions. Backed by a lifetime hardware warranty for the original purchaser , ProSafe products provide an abundance of intelligent, innovative and practical features, addressing the unique requirements of business networks.
Technical Specifications
|
|
System Requirements
Package Contents
Warranty
|

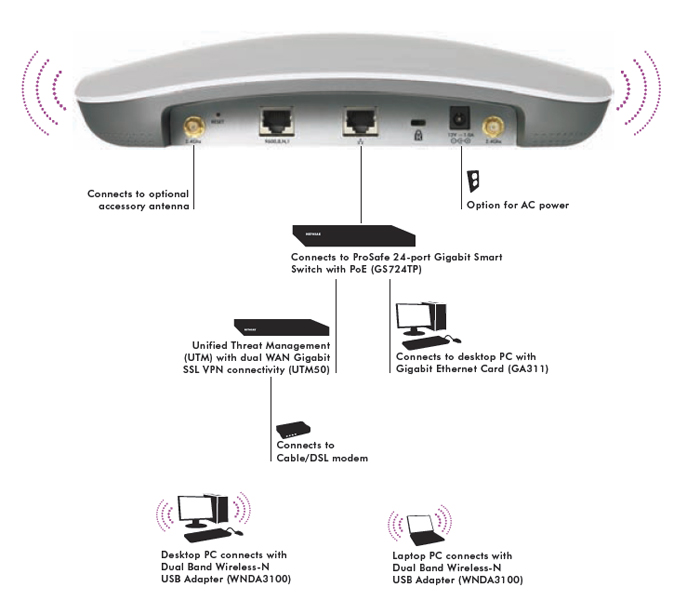

Diagram:
Documentation:
Download the NETGEAR WNDAP360 Datasheet (PDF).
