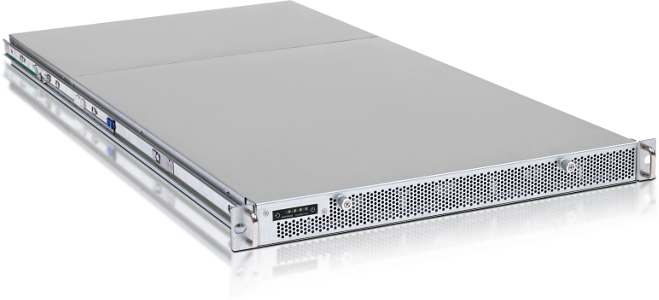

NETGEAR ReadyNAS 2312 Series
Industry's highest storage density in a 1U form factor
Sorry, this product is no longer available, Please contact us for a replacement.
Overview:
High Performance Rackmount Storage for Small Businesses
Data is one of the most valuable assets in any business. The sharing, storing, archiving and disaster recovery of data are critical elements in an IT infrastructure. In addition to these universal IT requirements, for a small and medium size business, scalability, ease-of-use and cost effectiveness are essential measurements in selecting the right storage solution.
The 2000 and 3000 series Rackmount ReadyNAS offer the ideal solution to a small and medium size business (SMB) that requires file serving and data backup to support workgroups of up to 40 employees. The ReadyNAS 2000 and 3000 class products run the same ReadyNAS OS and apps, while the 3000 class products offer higher performance and faster data throughput.
All ReadyNAS support the entire suite of features in ReadyNAS OS, including 5 levels of data protection, ReadyDR disaster recovery, and virtualized storage for VMware and other virtualized networks.
These Rackmount NAS models also come with the latest ReadyNAS OS 6.7 software for ultimate security and reliability. New features include Cloud backup to Amazon S3 (AWS) on top of Google Drive, Dropbox and Egnyte content management, 3D configuration tool, future-proof and safer Linux 4.4, unique RAID and Volume management for more reliable storage, and many more business features that enables the ultimate business features in ReadyNAS. Yield the benefits of the latest industrial and software design from NETGEAR with ReadyNAS storage.
All Inclusive Solution for Data Sharing, Storing & Securing
File Sharing: Unified storage platform for sharing files between Windows, Mac and Linux-based computers |
Backup & Recovery: ReadyDR disaster recovery solution based on block level replication technology |
Hard Drive Redundancy: RAID redundancy with automatic expansion and unlimited data snapshots for point-in-time restore. |
App Managed: Easily manage your ReadyNAS from the palm of your hand with NETGEAR Insight app |
Cloud Collaboration: Share selected folders and files with ReadyCLOUD with partners, clients or internal teams |
Virtualization: Thin provisioning, iSCSI support and certified with VMware |
Key Business Features
Automatic Backup & Sync: Using the ReadyCLOUD app for PC, scheduled protection is easier than ever before |
Cloud-managed Replication: Maintain data sets in multiple locations or ensure protection of data from remote or branch office locations |
Bit Rot Protection: A proprietary technology protecting your files from unplanned degradation |
iSCSI and Thin Provisioning: Powerful tools for a business taking advantage of virtual infrastructures |
Unlimited Snapshots: Unlimited data snapshot capability for on-box protection and flexible data recovery |
Anti-virus & Encryption: Keep data protected from outside threats and safe from prying eyes |
X-RAID & Instant Provisioning: Easily expand capacity and feel confident knowing that data is always protected |
Modern GUI and Cloud/Remote Access from Anywhere: Sleek modern interface and patented technology for secure remote access without configuration effort |
Specifications:
Hardware | ReadyNAS 2304 | ReadyNAS 2312 | ReadyNAS 3138 |
---|---|---|---|
CPU | Intel Celeron Dual Core 2.0GHz | Intel Atom Quad Core C3538 2.1GHz with QuickAssist | Intel Atom Quad Core 2.4GHz with QuickAssist |
Memory | 2GB | 2GB DDR4 | 4GB ECC UDIMM |
Drive Bays | 4 | 12 | 4 |
Drive Types Supported | SATA/SDD 2.5" or 3.5" | SATA 3.5" | SATA/SSD 2.5" or 3.5" |
Hot Swappable Drives | Yes | Yes | Yes |
Max Raw Internal Capacity (Based on 10TB drives): | 40TB | 120TB | 40TB |
eSATA Ports | 0 | 0 | 2 |
Gigabit LAN Ports | 2 | 4 | 4 |
USB Ports | 3 x USB 3.0 | 2x USB3.0 | 1 x USB 2.0, 2 x USB 3.0 |
Display Port (4k) | 1 | 0 | 0 |
Power Supply | Internal 180W: input 100-240V AC, 50/60Hz | Internal 350W: input 100-240V AC, 50/60Hz | Internal 180W: input 100-240V AC, 50/60Hz |
Fan (mm) | 3 x 40 | 5 x 40 | 3 x 40 |
Dimensions DxWxH (mm) Without rackmount brackets With rackmount brackets |
308 x 430 x 44 308 x 485 x 44 |
924 x 486 x 44 934 x 486 x 44 |
406 x 430 x 44 406 x 486 x 44 |
Weight (kg) | 4.19 | Machine weight: 13kg Rackmount brackets weight: 1.9kg |
5.21 |
Chassis Warranty | 5 years with NBD HW Replacement | 5 years with NBD HW Replacement | 5 years with NBD HW Replacement |
Software and Functionality | ReadyNAS 2304 | ReadyNAS 2312 | ReadyNAS 3138 |
Certification and Compatibility | VMware vSphere ESXi 6.0 | VMware vSphere ESXi 6.0 | |
Cloud-discovery, Setup and Management | Yes | Yes | Yes |
Data Protection with Unlimited Snapshots | Yes | Yes | Yes |
Web-managed Replication for Disaster Recovery | Yes | Yes | Yes |
Real-time Antivirus | Yes | Yes | Yes |
iSCSI and Thin Provisioning | Yes | Yes | Yes |
ReadyDR | Yes | Yes | Yes |
Insight App Management | Yes | Yes | Yes |
Documentation:
Download the NETGEAR ReadyNAS 2304/2312/3138 Network Attached Storage Datasheet (PDF).
