NETGEAR MS510TXM
8-Port Multi-Gigabit/10G Ethernet Smart Switch with 2 SFP+ Ports

NETGEAR MS510TXM

Netgear Products
Plus Click Switches
NETGEAR MS510TXM 8-Port Multi-Gigabit/10G Ethernet Smart Switch with 2 SFP+ Ports
#MS510TXM-100NAS
Our Price: Request a Quote

More pricing below, click here!

Please Note: All Prices are Inclusive of GST

Overview:

Elevate your business above the 1Gb barrier

As a leading provider of network equipment for SMBs, NETGEAR® understands the importance of providing a great choice of speed and power that can support the business’s needs to keep up with the growth of network speed, virtualization, cloud-based services and applications like VoIP, video streaming and IP surveillance, whether in the hospitality, catering, education or retail domains. Also, the increase in speeds for WiFi 6 Access Points now imply the need for faster speeds in the network.

The MS510TXM and MS510TXUP 8-Port Multi-gig/10G switches with 2 SFP+ Ports join the NETGEAR Standalone Smart Switches family, adding multi-gigabit/10G speed, a high PoE budget for all PoE/PoE+ devices, and Ultra60 PoE++ support (295W total PoE budget for MS510TXUP) for deploying devices with multi-gig capabilities and speed, such as WiFi 6 Access Points (eg. WAX610 from NETGEAR), multi-gig or 10G NAS.

NETGEAR Smart Switches offer powerful Layer 2+/Lite L3 features, great PoE functionality, and enhanced performance and usability. They are purposely designed for modern applications and support BYOD which requires companies to have more bandwidth to ensure smooth network connectivity with no congestion.

Furthermore, in 2.5G or 5G speeds, there is no requirement to upgrade your cabling from Cat5E, allowing for savings in installation costs.

To empower the Wireless and PoE applications, NETGEAR Insight Remote/ Cloud Management is added to these two new switch models as an optional management mode. By activating the NETGEAR Insight Cloud management, the users will enable management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud Portal from any device with a web browser.

Highlights:

Temperature- and load-based fan-speed control combines accurate monitoring with minimized system acoustic noise, ideal for office enviornment. The MS510TXM and MS510TXUP support quiet rack mounting operation with a maximum of 25dB (MS510TXM) and 33 dBA (MS510TXUP) even at full power and 25°C (77°F) ambient.

More Powerful Switch with Multi-gigabit/10G Speed

  • 4 x 1G/2.5G ports and 4 x multigig/10G ports
  • 8 x Ultra60 PoE++ ports with 295W PoE budget (MS510TXUP only)
  • 2 dedicated 10G SFP+ fiber uplink ports

Fast and flexible solution for SMB data, voice and video converged network

  • Non-blocking switching with 140Gbps bandwidth
  • Flexible rack-mounting option

Ideal companion to your NETGEAR WAX610

  • Connect and power your WAX610 with MS510TXUP
  • Connect your WAX610PA with MS510TXM
  • Manage all devices from a single dashboard with NETGEAR Insight

Powerful Connectivity and Security

  • Advanced VLAN support for better network segmentation
  • L2/L3/L4 access control lists (ACLs) for granular network access control including 802.1x port authentication
  • Advanced per port PoE controls for remote power management of PoE powered devices including operation scheduling
  • Advanced QoS (Quality of Service) for traffic prioritization including portbased, 802.1p and L2/L3/L4 DSCPbased
  • Auto “denial-of-service” (DoS) prevention
  • IGMP Snooping and Querier for multicast optimization
  • Egress Rate limiting and priority queuing for better bandwidth allocation
  • Port mirroring for network monitoring
  • Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings
  • IPv6 management: IPv6 QoS, IPv6 ACL, IPv6 Multicast, and static and dynamic IPv6 address assignment
  • Cable test to troubleshoot connection issues
  • Easy-to-use Web browser-based management GUI available in English, German and Japanese
  • SNMP v1, v2c, v3 and RMON remote monitoring

Fully-integrated cloud-manageable devices

  • Optional NETGEAR Insight Remote/ Cloud Management on both switch models. Easily activated through the local device GUI.

Smart IT, not Big IT

  • Easy to manage via web-based Management interface or Smart Control Center on Windows PC for multi-switch deployment
  • NETGEAR Switch Discovery Tool (NSDT) to discover, register and access to the local browser interface to configure the switches

NETGEAR Quality and Reliability

  • Worry-free Limited Lifetime Warranty*, online technical chat support and Next Business Day (NBD) replacement.

Simply Activate NETGEAR Insight Cloud Management to manage your network. Anytime. Anywhere.

By activating the NETGEAR Insight Cloud management, the users will enable fundamental management features allowing businesses simpler configuration and deployment from anywhere using the NETGEAR Insight app from mobile devices or the Insight Cloud Portal from any device with a web browser.

Unique advanced management features of these Insight Managed devices include:

  • Remote monitoring and management with performance dashboards and troubleshooting features including remote reboot, port and PoE advanced configuration including remote enable/disable/power-cycle, PoE scheduling, and firmware updates with auto-schedule mode
  • Single pane-of-glass multi-device, multi-network, and multi-site remote monitoring and notifications with the NETGEAR Insight app
  • Full-fledged local or remote access for configuration, management, and monitoring on a larger display using your tablet, laptop, or desktop computer through the NETGEAR Insight Cloud Portal
  • Configurable in-app and email alerts and notifications
  • Auto-join and configure (zero-touch provisioning) for additional Insight Managed devices added to the network
  • Centralized network configuration (policies) across Insight Managed Switches, Access Points, and ReadyNAS storage for VLANs, ACLs, QoS, LAGs, etc.
  • Cloud-based network administration, monitoring, and firmware management

Features and Benefits:

Hardware Features: Benefits:
Fully-integrated Cloud-manageable Devices Require no additional hardware (cloud keys, network portals, local servers, VPN or proxy appliances etc) to directly connect to the cloud and allow remote management. No additional hardware or software. Just switch to Insight Cloud Management mode through Web browser-based User Interface and go.
Multi-gig/10G 1000BASE-T Copper Ethernet and Ultra 60 PoE++ connections Support high-density VoIP, Surveillance and Wi-Fi AP deployments, scalable for future growth. Never face the risk of running out of PoE ports.
10G 1000BASE-X SFP ports Two dedicated 10 Gigabit SFP+ ports for aggregation to the network core. Support for Fiber and Copper modules.
Low Acoustics Temperature- and load-based fan-speed control allow for quiet operation in both desktop or rack mount configuration.
Energy Efficient Ethernet (IEEE 802.3az) Maximum power reduction for ongoing operation cost savings.
Desktop and rack-mount (kit available) Flexible deployment on desktop and also support rackmount.
Ideal companion to your NETGEAR WAX610
  • Connect and power your WAX610 with MS510TXUP
  • Connect your WAX610PA with MS510TXM
  • Manage all devices from a single dashboard with NETGEAR Insight
Software Features: Benefits:
Remote setup, management, and monitoring anywhere, anytime, from your mobile device, PC, Mac, or tablet Locally or remotely setup, configure, manage, monitor or even troubleshoot your network from anywhere, anytime. Check network status, view dashboards for network health and activity, power cycle PoE ports, etc, and update firmware remotely. No need to be on-site, open up ports to your network, or VPN into it.
Auto-join and Configure (Zero-Touch Provisioning) Additional Insight Managed devices added to the network automatically inherit settings and configuration.
Multi-site, Multi-network Single Pane-of-Glass View View and configure multiple networks across multiple sites, all from one single app; NETGEAR Insight.
Comprehensive IPv6 Support for Management, ACLs and QoS Build current network with future in mind. Ensure investment protection and a smooth migration to an IPv6-based network without switch replacement.
Robust security features:
  • 802.1x authentication (EAP)
  • Port-based security by locked MAC
Build a secured, converged network with all types of traffic by preventing external attacks and blocking malware while allowing secure access for authorised users.
Comprehensive QoS features:
  • Port-based or VLAN 802.1p-based prioritization
  • Layer 3-based (DSCP) prioritization
  • Port-based iegress rate limiting
Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video.
Auto-VoIP, Auto-Voice VLAN Automatic Voice over IP prioritization (Auto-VoIP) simplifies most complex multi-vendor IP telephone deployments either based on OUI bytes (default database and user-based OUIs) in the phone source MAC address, providing the best class of service to VoIP streams (both data and signaling) over other ordinary traffic by classifying traffic, and enabling correct egress queue configuration.
Auto-WiFi, Auto-Camera VLAN Auto-WiFi VLAN and Auto-Camera VLAN allows the switch to forward packets with the inputed OUIs of Wireless APs and cameras in a special VLAN with priority settings of that VLAN automatically.
IGMP Snooping Facilitate fast receiver joins and leaves for multicast streams. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router.
Protected Ports Ensure no exchange of unicast, broadcast, or multicast traffic between the protected ports on the switch, thereby improving the security of your converged network. This allows your sensitive phone phone conversations to stay private and your surveillance video clips can be forwarded to their designated storage device without leakage or alteration.
DHCP Snooping Ensure IP address allocation integrity by only allowing DHCP messages from trusted DHCP servers and dropping malformed DHCP messages with a port or MAC address mismatch.
Dynamic VLAN Assignment (RADIUS) IP phones and PCs can authenticate on the same port but under different VLAN assignment policies. Users are free to move around and enjoy the same level of network access regardless of their physical location on the network.
Link Aggregation (LACP) Build up bigger bandwidth to support aggregated uplink/downlink traffic or to provide redundant link(s). Aggregate up to 8 ports for 8Gbps connections.
Loop Prevention and Auto-DoS Prevention Detect and prevent (auto port shutdown) accidental network loops and protect against DoS attacks.
PoE Timer and Scheduling Allows IT administrators to increase network security, better utilize network resources and conserve energy by scheduling or remotely controlling on/ off of PoE ports.
Port Mirroring and Cable Test Many-to-one port mirroring for better and quicker network diagnostics and troubleshooting. Cable test easily identifies bad Ethernet cables.
Dual Firmware Images Dual firmware images for transparent firmware updates with minimum service interruption.
Firmware Updates from Cloud Direct cloud-to-device firmware updates, initiated and/or scheduled using the Insight app, all from the palm of your hand, anytime, anywhere!

At a Glance:

Hardware at a glance
  Front Rear Side
Model name Form-Factor 1G/2.5G 1000BASE-T RJ-45 Copper Ports 1G/2.5G/5G/10G 1000BASE-T RJ-45 Copper Ports 10G SFP+ Uplink Ultra60 PoE++ (60W/port) Ports (PoE Budget Power Supply Fans
MS510TXM Rackmount kit 4 4 2 - - 2 internal fans, fixed
MS510TXUP Rackmount 4 4 2 8 (295W) 1 internal PSU, fixed 3 internal fans, fixed

Software at a glance
Management PoE Control Features IPv4/IPv6 ACL and QoS IPv4/IPv6 Multicast Filtering VLANs IEEE (802.3az) Energy Efficient Ethernet Convergence Link Aggregation
Web Browser-based GUI (HTTP/HTTPS),

PC-Based Smart Control Center Utility (SCC)

RMON, SNMP

NETGEAR Insight Cloud Management via mobile App and Insight Portal
PoE on/off,
Dynamic PoE budget allocation,
PoE power priority setting,
PoE Power Usage Metering,
PoE scheduling Uninterrupted PoE
L2, L3, L4 Ingress IGMP Snooping, Querier Static, Dynamic, VoIP, Voice, WiFi, Camera Yes LLDP-MED, RADIUS, 802.1X LACP and Manual Static
LAGs (up to 8 LAGs with max 8 members)

Performance at a glance
Model Name Packet buffer CPU ACL MAC Address Table ARP Table VLANs Fabric Latency (64-Byte Packet) Multicast IGMP Group
MS510TXM 2 MB 1GHz dual core
256MB RAM
64MB SPI FLASH
100 shared (ingress) 32K Max MAC
256 VLANs
140 Gbps line-rate 2.5G Copper: <5.903µsec
10G Copper: <2.420µsec
10G Fiber: < 1.257µsec
256
MS510TXUP 2 MB 1GHz dual core
256MB RAM
64MB SPI FLASH
100 shared (ingress) 32K Max MAC
256 VLANs
140 Gbps line-rate 2.5G Copper: <5.903µsec
10G Copper: <2.420µsec
10G Fiber: < 1.257µsec
256

Specifications:

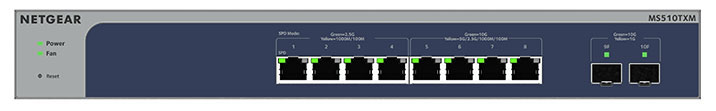

MS510TXM Front View

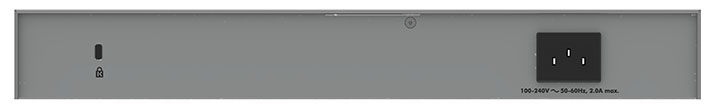

MS510TXM Rear View

Models: MS510TXM MS510TXUP
Product Specifications
1G/2.5G Ethernet RJ-45 Copper ports (100M/1G/2.5G) - 1000BASE-T 4 4
Multi-gigabit/10G Ethernet RJ-45 Copper ports (100M/1G/2.5G/5G/10G) - 1000BASE-T 4 4
PoE / PoE+ / PoE++ ports - 8 (60W/port)
10 Gigabit SFP+ (fiber) ports (1G/10G) - 1000BASE-X 2 (dedicated) 2 (dedicated)
Power Supply Internal Power Supply Internal Power Supply
LEDS
Front (per device) Power (with Cloud Mode Indicator), Fan, LED Mode Power (with Cloud Mode Indicator), Fan, PoE Max, LED Mode
Front (per port) Speed/Link/Activity Speed/Link/Activity/PoE Status
Unified Network Management (Discovery, Setup, Monitoring, and Management) through NETGEAR Insight Cloud Management)
Discovery, setup, monitoring and management NETGEAR Insight mobile app on phone or tablet; Insight Cloud Portal from PC, Mac, or tablet web browser
Remote/Cloud management Anywhere, anytime, from the palm of your hand using Insight mobile app or from any PC, Mac, or tablet web browser using the Insight Cloud Portal
Centralized network configuration (policies) Centralized network configuration (policies) across Insight Managed Switches, Wireless Access Points, and Business-class ReadyNAS Storage for VLANs, ACLs, QoS, and LAGs
Device auto-join and configure (zero-touch provisioning Additional Insight Managed devices added to the network automatically inherit the network configuration
Multi-site, multi-network single pane-of-glass view Manage multiple sites, locations, and networks in a single view using the Insight mobile app or Insight Cloud Portal
Multi-switch, multi-port concurrent configuration for ACLs, VLANs, QoS, PoE, etc Apply settings and policies on multiple ports across multiple switches all at the same time using the Port Config Wizard
Performance Specifications
CPU 1GHz dual core
256MB RAM
64MB SPI FLASH
Packet buffer memory (Dynamically shared across only used ports) 2 MB
Forwarding modes Store-and-forward
Bandwidth (non-blocking, full duplex) 140 Gbps
Priority queues 8
Priority queuing Weighted Round Robin (WRR) and Strict Priority
MAC Address database size (48-bit MAC addresses) 32K
Multicast groups 256
Number of VLANs 256
Number of DHCP snooping bindings 256
Access Control Lists (ACLs) 100 shared for MAC, IP and IPv6 ACLs (ingress)
Packet forwarding rate (64 byte packet size) (Mfps or Mpps) 14.8
2.5 G Copper standard latency (µsec) (64-byte; 1518-byte; 9216-byte frames) 64-byte: 5.903 µsec
1518-bye: 6.040 µsec
9216-byte: 6.079 µsec
10G Copper Uplink latency (µsec) (64-byte; 1518-byte; 9216-byte frames) 64-byte: 2.420 µsec
1518-bye: 2.501 µsec
9216-byte: 2.499 µsec
10G SFP+ Fiber latency (µsec) (64-byte; 1518-byte; 9216-byte frames) 64-byte: 1.257 µsec
1518-bye: 1.337 µsec
9216-byte: 1.348 µsec
Jumbo frame support 10K
Acoustic noise level @ 25°C (dBA) (ANSI-S10.12) 25 dBA 33 dBA
Mean Time Between Failures (MTBF) @ 25°C 1,059,519 hrs (121 yrs) 848,553 hrs (97 Years)
POE Configuration
Models: MS510TXM MS510TXUP
Number of PoE (802.3af) / PoE+ (802.3at) / PoE++ (802.3bt) ports Yes Yes
Total PoE power budget (watts) Yes Yes
Advanced per-port PoE controls (enable/disable/power limit) Yes Yes
Advanced per-port PoE scheduling/timers Yes Yes
L2+/Lite L3 Services - Availability
Broadcast, multicast, unknown unicast storm control Yes Yes
IEEE 802.3ad - LAGs (LACP) Yes Yes
IEEE 802.3x (full duplex and flow control) Yes Yes
IEEE 802.1D Spanning Tree Protocol Yes Yes
IEEE 802.1w Rapid Spanning Tree Protocol Yes Yes
IEEE 802.1s Multiple Spanning Tree Protocol Yes Yes
L2+/Lite L3 Services - Multicast Filtering
IGMP snooping (v1, v2 and v3) Yes Yes
MLD snooping support (v1 and v2) Yes Yes
IGMP snooping queries Yes Yes
Block unknown multicast Yes Yes
Multicast groups 256 256
DHCP Services
DHCP client Yes Yes
DHCP snooping Yes Yes
Number of DHCP snooping bindings 256 256
Link Aggregation
Models: MS510TXM MS510TXUP
IEEE 802.3ad - LAGs (LACP) Yes Yes
Manual Static LAG Yes Yes
# of Static or LACP LAGs
# of members in each LAG
8 LAGs with max 8 members in each LAG
Network Monitoring and Discovery Services
802.1ab LLDP Yes Yes
LLDP-MED Yes Yes
SNMP v1, v2c, v3 v1, v2c, v3
RMON group 1,2,3,9 Yes Yes
Network Security
IEEE 802.1x Yes Yes
Guest VLAN Yes Yes
RADIUS-based VLAN assignment via .1x Yes Yes
MAC-based .1x Yes Yes
RADIUS accounting Yes Yes
Access Control Lists (ACLs) L2 / L3 / L4 L2 / L3 / L4
IP-based ACLs (IPv4 and IPv6) Yes Yes
MAC-based ACLs Yes Yes
TCP/UPD-based ACLs Yes Yes
MAC lockdown Yes Yes
MAC lockdown by the number of MACs Yes Yes
Control MAC # Dynamic learned entries 4096 4096
Control MAC # static entries 48 48
IEEE 802.1x RADIUS port access authentication Yes Yes
Port-based security by locked MAC addresses Yes Yes
Dynamic ARP inspection Yes Yes
Broadcast, multicast, unknown unicast storm control Yes Yes
DoS attacks prevention Yes Yes
Quality of Service (QoS)
Models: MS510TXM MS510TXUP
Port-based rate limiting Yes, ingress and egress Yes, ingress and egress
Port-based QoS Yes Yes
Support for IPv6 fields Yes Yes
DiffServ QoS Yes, ingress Yes, ingress
IEEE 802.1p COS Yes Yes
Destination MAC and IP Yes Yes
IPv4 and v6 DSCP IPv4 and IPv6 IPv4 and IPv6
IPv4 and IPv6 ToS Yes Yes
TCP/UDP-based Yes Yes
Weighted Round Robin (WRR) Yes Yes
Strict priority queue technology Yes Yes
Auto-VoIP VLAN / Auto-Voice VLAN Yes, manual or automatic assigment of VoIP phone traffic based on OUI bytes (default database and user-based OUIs) in the phone source MAC address to Voice VLAN associated with high priority QoS parameters
Other Features
Advanced per-port PoE controls (enable/disable/power limit) Yes Yes
Advanced per-port PoE scheduling Yes Yes
Loop detection & prevention Yes Yes
DNS Client Yes Yes
Option to enable/disable BPDU flooding when STP is disabled Yes Yes
Option to enable/disable the flooding of EAPOL when 802.1x is disabled Yes Yes
Management, Monitoring & Troubleshooting
Models: MS510TXM MS510TXUP
Cloud/Remote management Yes Yes
Insight mobile app & Insight Cloud Portal management Yes Yes
uPnP Discovery Yes, activated by default Yes, activated by default
Networking monitoring Yes Yes
Data/performance logs Yes Yes
Centralized network configuration/policies (network-centric management) Yes Yes
Device auto-join and configure (zero-touch provisioning) Yes Yes
Multi-site, multi-network single pane-of-glass view Yes Yes
Multi-switch, multi-port concurrent configuration Yes Yes
Network/global password (for all Insight Managed devices on a network) Yes (per network/subnet via NETGEAR Insight mobile app and Insight Cloud Portal)
Password management Yes Yes
IP Access List Yes Yes
Configurable management VLAN Yes Yes
Admin access control via RADIUS and TACACS+ Yes Yes
IPv6 management Yes Yes
SNTP client over UDP port 123 Yes Yes
Firmware upgrade direct from Cloud (via mobile device or Insight Cloud Portal) Yes Yes
SNMP v1/v2c Yes Yes
SNMP v3 with multiple IP addresses Yes Yes
RMON group 1, 2, 3, 9 Yes Yes
Smart Control Center (SCC) for multi-switch management Yes Yes
Port mirroring Yes Yes
Many-to-one port mirroring Yes Yes
Cable test utility Yes Yes
Ping and tracerout client Yes Yes
Local-only web browser-based management GUI Yes Yes
HTTP/TLS Web-based access (version) Yes (v1.2) Yes (v1.2)
HTTP firmware upload/download Yes Yes
Dual software (firmware) image Yes Yes
Memory and flash log Yes Yes
Syslog (Server) Yes Yes
Physical Specifications
Models: MS510TXM MS510TXUP
Dimensions 330 x 206 x 43 mm ( 13.0 x 8.12 x 1.7 in) 330 x 206 x 43 mm ( 13.0 x 8.12 x 1.7 in)
Weight 2.08 kg (4.25 lb) 2.51 kg (5.53 lb)
Power Consumption
Max power (worst case, all ports used, line-rate traffic) (Watts) 47.0 W -
Max power (worst case, all ports used, full PoE, line-rate traffic) (Watts) - 380.00 W
Min power (link-down standby) (Watts) 23.90 W 31.50 W
Heat Dissipation (max and min) (BTU/hr) Max: 160.458 BTU/hr
Min: 81.5946 BTU/hr
Max: 1294.5888 BTU/hr
Min: 107.541 BTU/hr
Energy Efficient Ethernet (EEE) IEEE 802.3az Yes (deactivated by default)
Auto power down -
Fan(s) (temperature- and load-based speed control) 2 3
Environmental Specifications
Operating Temperature 0° to 50°C (32° to 122°F)
Operating Humidity 95% maximum relative humidity (RH), non-condensing
Operating Altitude 10,000 ft (3,000 m) maximum
Storage Temperature -20° to 70°C (- 4° to 158°F)
Storage Humidity 95% maximum relative humidity (RH), non-condensing
Storage Altitude 10,000 ft (3,000 m) maximum
Electromagnetic Emissions and Immunity
Certifications
  • CE: EN 55032:2012+AC:2013/CISPR 32:2012, EN 61000-3-2:2014, Class A, EN 61000-3-3:2013, EN 55024:2010
  • VCCI : VCCI-CISPR 32:2016, Class A
  • RCM: AS/NZS CISPR 32:2013 Class A
  • CCC: GB4943.1-2011; YD/T993-1998; GB/T9254-2008 (Class A)
  • FCC: 47 CFR FCC Part 15, Class A, ANSI C63.4:2014
  • ISED: ICES-003:2016 Issue 6, Class A, ANSI C63.4:2014
  • BSMI: CNS 13438 Class A
Safety
Certifications
  • CB report / certificate IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013
  • UL listed (UL 1950)/cUL IEC 950/EN 60950
  • CE LVD: EN 60950-1: 2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
  • RCM (AS/NZS) 60950.1:2015
  • CCC (China Compulsory Certificate): GB4943.1-2011; YD/T993-1998; GB/T9254-2008 (Class A)
  • BSMI: CNS 14336-1
Warranty and Support
ProSAFE Lifetime Warranty Included, Lifetime*
Next-Business-Day (NBD) Replacement Included, Lifetime*
Technical support via phone 90 days free from date of purchase*
24x7 Online Chat Techinical support Included, Lifetime*
ProSUPPORT OnCall 24x7 Service Packs** Category 2:
PMB0311-10000S (1 Year.)
PMB0331-10000S (3 Years.)
PMB0351-10000S (5 Years.)
Package Contents
All Models
  • Smart Switch
  • Power cord (localized to country of sale)
  • Rack-mounting kit
  • Rubber footpads for tabletop installation
  • Quick install guide

* This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorised reseller, and covers unmodified hardware, fans and internal power supplies - not software or external power supplies, and requires product registration at https://www.netgear.com/business/registration within 90 days of purchase; see https://www.netgear.com/about/warranty for details. Intended for indoor use only.
** The NETGEAR OnCall 24x7 contract provides unlimited phone and email technical support for your networking product. For ProSAFE products purchased prior to 06/2014, also includes next business-day hardware replacement.

Network Diagram:

Get Multi-gigabit and 10G Speed to your business with more powerful PoE++

MS510TXUP Sample Connection Diagram
MS510TXUP Sample Connection Diagram

MS510TXM Sample Connection Diagram
MS510TXM Sample Connection Diagram

Documentation:

Download the NETGEAR MS510TXM and MS510TXUP 8-Port Multi-Gigabit/10G Ethernet Smart Switch Datasheet (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.

Pricing Notes:

Netgear Products
Plus Click Switches
NETGEAR MS510TXM 8-Port Multi-Gigabit/10G Ethernet Smart Switch with 2 SFP+ Ports
#MS510TXM-100NAS
Our Price: Request a Quote
