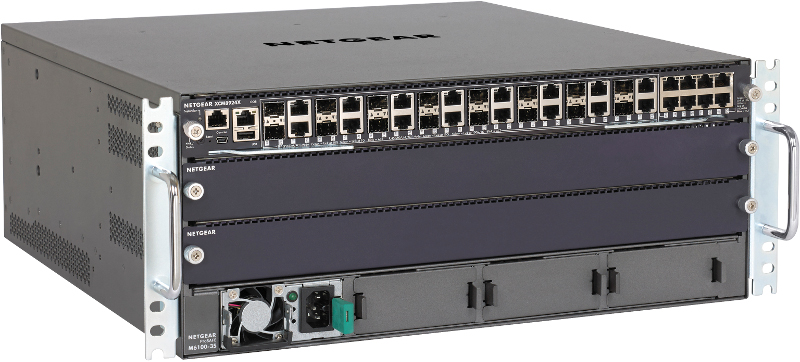

NETGEAR M6100-24X3
Chassis Starter Kit Bundle

Features:

The M6100 switch series consists of Gigabit access layer and 10 Gigabit distribution layer switches in the NETGEAR modular chassis switch product line. The M6100 switch series offers high-quality, high-density chassis alternative to stackable switches in campus LAN and midsize organizations demanding networks. With more than 1.4 Tbps switching and routing capacity, passive backplane, management and fabric nonstop forwarding redundancy, the M6100 series delivers world-class resiliency and scalability. Ultimately, operating software and system management features take the complexity out of delivering L2/L3/L4 rich services for enterprise edge and SMB core deployments.

NETGEAR M6100 series key features:

• Proficient access layer in campus LAN networks, and competent distribution or core layer for midsize organizations networks
• Advanced Layer 2, Layer 3 and Layer 4 feature set - no license required - including PBR, BGP, DCBX, PFC, ETS and FCoE FIP
• Innovative distributed fabric, with nonstop forwarding and hitless failover redundancy between supervisory I/O modules
• Up to 144 (Gigabit) ports, or 72 (10 Gigabit) ports, or a combination of both in dense form factor models
• PoE+ (30 watts per port) and UPOE (60 watts per port) modular, flexible implementation
• Ultra-low latency and scalable table size with 32K MAC, 8K ARP/NDP, 4K VLANs, 12K routes

NETGEAR M6100 series PoE features:

• Any Gigabit copper blade can receive PoE+ or UPOE daughter cards for easy upgrade/downgrade and best investment protection
• Up to 3,000W PoE budget is provided by internal power supplies when 6,000W are available with additional 1U power shelf
• All set for rapid proliferation of PoE/PoE+ devices, such as IP telephony endpoints, 802.11n / 802.11ac access points and IP security cameras
• Future-proof 60W UPOE power delivered to next-gen VDI clients or physical security devices; UPOE is backward compatible with PoE/PoE+

NETGEAR M6100 series software features:

• Advanced classifier-based, time-based hardware implementation for L2 (MAC), L3 (IP) and L4 (UDP/TCP transport ports) security and prioritization
• Voice VLAN with SIP, H323 and SCCP protocols detection and LLDPMED IP phones automatic QoS and VLAN configuration
• Efficient authentication tiering with successive DOT1X, MAB and Captive Portal methods for streamlined BYOD
• Best-in-class IPv4/IPv6 static and dynamic routing including Proxy ARP, OSPF, BGP, Policy-based routing and automatic 6-to-4 tunneling
• Enhanced IPv4/IPv6 multicast forwarding with IGMPv3/MLDv2 Querier and Control Packet Flooding protection
• High performance IPv4/IPv6 multicast routing with PIM timer accuracy and unhandled PIM (S,G,rpt) state machine events transitioning
• Advanced IPv4/IPv6 security implementation including malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
• Innovative multi-vendor Auto-iSCSI capabilities for easier virtualization optimization
• Datacenter-ready features include DCBX (802.1Qaz), Priority Flow Control (PFC), Enhanced Transmission Selection (ETS) and FCoE FIP Snooping

NETGEAR M6100 series resiliency and availability features:

• Passive backplane, distributed redundant fabric and redundant management provide hitless, nonstop forwarding failover protection for always-on availability
• Redundant N+1 power protection contributes to business continuity management
• Distributed Link Aggregation across all I/O blades allows for multiresiliency and advanced load balancing capabilities
• Multi Chassis Link Aggregation (MLAG) between two M6100 switches overcomes limitations of Spanning Tree, increasing bandwidth while preserving redundancy
• Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/ PVRSTP) offer interoperability with PVST+ infrastructures

NETGEAR M6100 series management features:

• DHCP/BootP innovative auto-installation including firmware and configuration file upload automation
• Industry standard SNMP, RMON, MIB, LLDP, AAA, sFlow and RSPAN remote mirroring implementation]\
• Selectable service port for out-of-band Ethernet management (OOB)
• Selectable standard RS232 straight-through serial RJ45 and Mini-USB ports for local management console
• Standard USB port for local storage, logs, configuration or image files
• Dual firmware image and configuration file for updates with minimum service interruption
• Industry standard command line interface (CLI) for IT admins used to other vendors commands
• Fully functional Web console (GUI) for IT admins who prefer an easy to use graphical interface
• Single-pane-of-glass NMS300 management platform with massconfiguration support

NETGEAR M6100 series warranty and support:

• NETGEAR ProSAFE Lifetime Hardware Warranty*
• Included Lifetime Technical Support
• Included Lifetime Next Business Day Hardware Replacement

At a Glance:

Software at a Glance

* CLI only

Performance at a Glance

Each Line Card provides line-rate switching and routing capacity. Each Slot provides 2 x 40G channels (80G half-duplex /160G full-duplex) access to passive backplane.

Deployment:

Target Application

Chassis Standards Redefined

The new ProSAFE M6100 Chassis series is set to shake up how SMBs deploy high performance, highly resilient, fully redundant and future proof switched networks from the Core to the Edge - without hurting or exhausting IT budgets.

Get started today with NETGEAR M6100 series

Offering the densest Gigabit and 10G port solution in a 4U footprint, the M6100 is a fully distributed fabric, passive backplane solution with full management and power redundancy - as standard. UPOE capability extends its potential and delivers true investment protection to leverage today and tomorrow's evolving powered devices.

An ideal platform for virtualized, convergence and surveillance environment

• Designed for use at the center of a small to mid-sized organization, or as an aggregated or access solution in a larger campus or mid-sized enterprise branch network, the application scenarios for the M6100 are both wide and diverse. For those who require a resilient Gigabit connectivity option to the desktop or 10G for virtualized server and storage needs through to large IP camera surveillance environments, the M6100 provides the markets fastest backplane speeds with hitless failover to deliver enterprise grade service levels excellence for SMBs.

All the hallmarks of a chassis with associated benefits but at fixed stackable price points

• Integrated supervisor blades - NO need for separate or spare supervisor blades. Slot 1 is the primary supervisor with slot 2 the default back-up supervisor
• PoE/PoE+/UPOE flexibility - NO separate PoE blades required. Simply add PoE daughter cards to any Gigabit blade to introduce PoE as and when required
• 480Gbps inter-module backplane performance - NO performance compromise. With up to 10 x performance of fixed stackable solutions with similar port counts, value performance ratios are unrivalled
• Distributed fabric, passive backplane - NO single point of failure with management and power backup and distributed link aggregation across multiple chassis arrangements
• L2/L3/L4 routing as standard - NO additional licensing costs or annual maintenance contracts to inflate prices and jeopardise sales

Class leading support services as standard

• All M6100 Chassis series products come with Lifetime Warranty, Lifetime Next Business Day and Lifetime Technical online support included - at no extra cost

Documentation:

Download the NETGEAR M6100 Series Datasheet (PDF).
