NETGEAR LB1120
4G LTE Modem with PoE

NETGEAR LB1120

Sorry, this product is no longer available, Please contact us for a replacement.

Overview:

Simple, Fail-safe Connectivity

The NETGEAR LTE Modem LB1120 is a simple LTE connectivity solution for all your devices and equipment. Simply connect this LTE Modem directly to your router, switch or computer to provide an automatic 4G LTE or 3G fallback broadband connection, with download speeds of up to 150 Mbps. It has a Gigabit Ethernet WAN port so you can plug in your wireless router and share connection with all your WiFi and wired devices.

Designed for simple connectivity, the LTE modem is compact, convenient, and easy to setup. Simply connect your existing wire line broadband connection to this modem to provide instant 4G LTE or 3G broadband backup connection.

Secure and super-fast 4G LTE connectivity with 3G fallback for broadband failover
Get up to 150 Mbps download and 50 Mbps upload speeds
Gigabit Ethernet WAN port for connection pass-through
Two connectors available to connect optional 4G/3G antennas for better signal reception

Features:

Super-fast Connectivity with 4G LTE & 3G

Get secure and super-fast 4G LTE connectivity with 3G fallback for broadband failover. Get up to 150 Mbps download and 50 Mbps upload speeds.

Wired Connections

Gigabit Ethernet WAN port for connection pass-through.

Better Signal Reception

Two connectors available to connect optional 4G/3G antennas for better signal reception.

Use Cases

We all depend on a fast, always-on broadband connection, and planning ahead to ensure everyone stays connected is essential.

Using the NETGEAR 4G LTE Modem for broadband connectivity enables Internet access at fast speeds with the convenience of portability and flexibility. Unlike other connectivity sources, the NETGEAR 4G LTE Modem can be easily installed in a matter of minutes, and it's ideal for a wide range of environments including rural areas, outdoors, and locations where wireline option is not readily available.

The NETGEAR 4G LTE Modem is also a reliable backup source for broadband connectivity, allowing you to continue running without any disruption when your wire line broadband is unexpectedly not available.

Some typical applications include:

LTE connectivity for business' needs
Interim solution to fixed line service
Last-mile connection
Kiosk - wire-free connection
Vacation cabins / rural homes
Temporary offices such as construction sites
Mobile stores such as food trucks

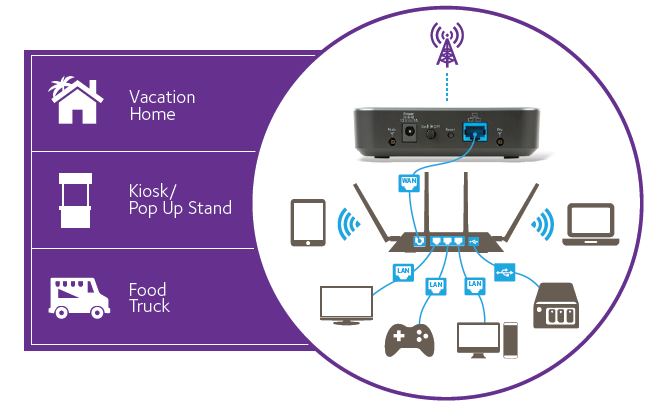

LB1120 Connection Diagram

Connection Diagram:

Connection Diagram

Specifications:

NETGEAR LB1120 Specifications
Band Support	LTE Category 4 (up to 150 Mbps): B2, 4, 5, 12 UMTS DC-HSPA+ - (up to 42 Mbps): B2, 5
Power Adapter	12V DC, 1A
Key Features	Built-in Gigabit WAN connection for flexible home and office connectivity Fast 4G LTE backup speeds up to 150 Mbps for downloads and 50 Mbps for uploads Provides 4G to 3G fallback support SMS message alerts for firmware updates, data usage, and failover to LTE TR-069 for remote management Two TS-9 connectors available to connect optional 4G/3G antennas for better signal reception Direct IP pass-through for secure enterprise VPN configurationq Manage settings via a browser-based web UI LEDs on device to check network status instantly Portable, light and compact design for you to take anywhere
LEDs	Power LTE Signal Quality (5 LED bar graph) LAN
Physical Specifications	Dimensions: 4.7 (W) x 3.9 (D) x 1.2 (H) in Weight: 0.4 lb
Package Content	4G LTE Modem (LB1120) Power adapter Ethernet cable Quick start guide
Interface	1 Gigabit WAN Ethernet RJ-45 port Internal WWAN antennas with support for optional TS9 external antennas 3FF (micro) SIM card slot
System Requirements	Compatible 2G/3G/4G LTE Mobile Service (3FF Micro-SIM) Microsoft Windows 7, 8, 8.1, 10, Vista, XP, Mac OS (10.6.8. and newer) and other operating systems running a TCP/IP network (for accessing Web Management User Interface) Compatible browsers such as Microsoft Internet Explorer 5.0, Firefox 2.0, Safari 1.4, or Google Chrome 11.0 browsers or higher (for accessing Web Management User Interface)
Support	90-day complimentary technical support*
Warranty	www.netgear.com/warranty

*90-day complimentary technical support following purchase from a NETGEAR authorised reseller.

Documentation:

Download the NETGEAR LB1120 Datasheet (PDF).

NETGEAR LB1120 4G LTE Modem with PoE
