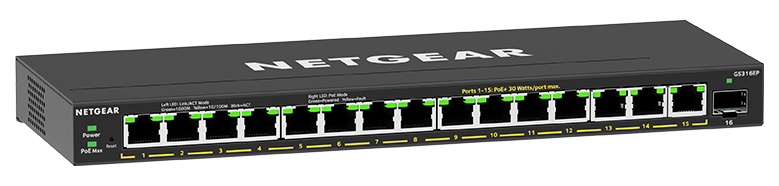

NETGEAR GS316EP
16-Port PoE+ Gigabit Ethernet Plus Switch (180W) with 1 SFP Port
Our Price: Request a Quote
More pricing below, click here!
Please Note: All Prices are Inclusive of GST
Overview:
Control and Configure Beyond Plug-and-Play
The NETGEAR 16-Port PoE+ Gigabit Ethernet Plus Switch delivers essential business networking features and powers PoE+ devices like VoIP phones, IP cameras, and more.
NETGEAR Plus Switches with PoE meets business networks growing need by providing fundamental network features such as simplified VLANs, QoS set-up and IGMP Snooping that will help optimize the performance of business networks. Plus Switches are the perfect upgrade from the plugand-play unmanaged switch, delivering essential networking features at a very affordable price. These models support Power-Over-Ethernet (PoE) and can power devices such as VOIP phones, surveillance IP cameras, wireless access points and many other applications. These new PoE+ Gigabit Ethernet Plus switches models include uninterruptable PoE to help optimize the performance and troubleshooting of business networks. The new and improved business-friendly GUI allows easy management and simple configuration. With the growing deployment of applications and an all-inone solution, providing management and power to these applications would be ideal.
- Enable network configuration and management at the price point of unmanaged switches
- Simple, yet useful network set-up on top of plug-and-play connectivity
- Business-friendly and easy-to-use web browser-based management GUI
- VLAN support for traffic segmentation
- Quality of Service (QoS) for traffic prioritization
- Auto “denial-of-service” (DoS) prevention
- Troubleshoot connection issues via cable test
- Loop prevention1 , loop detection2 , and broadcast storm controls
- Rate limiting for better bandwidth allocation
- Port mirroring for network monitoring
- Jumbo frame support
- Advanced features such as per port PoE controls
- Uninterrupted PoE keeps PoE power on even when the switch is updating firmware or performing software reboot.
- 802.3at standard offering 30W/port
- Fanless and versatile mounting option (desktop and wall-mountable)
Features:
Gigabit Ethernet
16 ports provide up to 1000 Mbps of dedicated, non-blocking bandwidth each.PoE+ Support
15 PoE+ ports provide a total of 180W of power so you can power and connect your devices with a single wire.Advanced PoE Controls
Manage PoE prioritization, PoE power limit per port, and more for simple control over all PoE-powered devices.Non-Blocking Switching
10Gbps (10/100/1000 Mbps) line rate fabric ensures congestion-free connectivity to your devices.Fanless Design
Silent operation makes this switch perfect for noise-sensitive environments.Versatile Mounting Options
Install your switch on your desktop, or mount it to your wall or rack with the hardware provided in the box.Model Comparison:
| Models: | GS305EP | GS305EPP | GS308EP | GS308EPP | GS316EP | GS316EPP |
|---|---|---|---|---|---|---|
| Features | ||||||
| 10/100/1000 RJ45 Copper Ports (Auto Uplink) | 5 | 5 | 8 | 8 | 16 | 16 |
| Enclosure | Metal | Metal | Metal | Metal | Metal | Metal |
| Connector Type | Metal | Metal | Metal | Metal | Metal | Metal |
| PoE | ||||||
| # of PoE ports | 4 | 4 | 8 | 8 | 15 | 15 |
| # PoE+ 802.3at Ports | 4 | 4 | 8 | 8 | 15 | 15 |
| SFP ports | 0 | 0 | 0 | 0 | 1 | 1 |
| Total PoE/PoE+ Budget | 63W | 120W | 62W | 123W | 180W | 231W |
| Advanced PoE Controls | Yes | Yes | Yes | Yes | Yes | Yes |
| PoE Scheduling | No | No | No | No | Yes | Yes |
| Uninterrupted PoE | Yes | Yes | Yes | Yes | Yes | Yes |
| Performance Specifications | ||||||
| Forwarding modes | Store-and-forward | |||||
| Bandwidth | 10 Gbps | 10 Gbps | 16 Gbps | 16 Gbps | 32 Gbps | 32 Gbps |
| Max MAC entries | 4K | 4K | 4K | 4K | 4K | 4K |
| Buffer Size | 192KB | 192KB | 192KB | 192KB | 192KB | 192KB |
| Energy Efficient Ethernet (IEEE 802.3az) compliant | Yes | Yes | Yes | Yes | Yes | Yes |
| Priority queuing | WRR | WRR | WRR | WRR | WRR | WRR |
| Jumbo frame support | 9,216 bytes | 9,216 bytes | 9,216 bytes | 9,216 bytes | 10,000 bytes | 10,000 bytes |
| Acoustic noise level @ 25° C (dBA) (ANSI-S10.12) | 0 | 0 | 0 | 0 | 0 | 0 |
| Mean Time Between Failures (MTBF) @ 25° C | 1,164,104 hrs | 853,770 hrs | 859,126 hrs | 842,428 hrs | 784,742 hrs | 570,435 hrs |
| L2 Services - VLANS | ||||||
| Models: | GS305EP | GS305EP | GS308EP | GS308EP | GS316EP | GS316EP |
| VLAN (# Supported) | 64 | 64 | 64 | 64 | 64 | 64 |
| IEEE 802.1Q VLAN Tagging | Yes | Yes | Yes | Yes | Yes | Yes |
| Port-based VLAN | Yes | Yes | Yes | Yes | Yes | Yes |
| L2 Services - Availability | ||||||
| Link Aggregation/Port Trunking | Yes | Yes | Yes | Yes | Yes | Yes |
| Number of Static Manual LAGs and # of members | 2/4 | 2/4 | 2/4 | 2/4 | 8/8 | 8/8 |
| L2 Services - Multicast Filtering | ||||||
| IGMP Snooping (v1, v2 and v3) | Yes | Yes | Yes | Yes | Yes | Yes |
| Block unknown Multicast | Yes | Yes | Yes | Yes | Yes | Yes |
| Supported Mulitcast groups | 128 | 128 | 128 | 128 | 128 | 128 |
| L3 Services - DHCP | ||||||
| DHCP Client | Yes | Yes | Yes | Yes | Yes | Yes |
| Quality of Service (QoS) | ||||||
| Models: | GS305EP | GS305EP | GS308EP | GS308EP | GS316EP | GS316EP |
| Rate Limiting | Yes | Yes | Yes | Yes | Yes | Yes |
| DSCP | Yes | Yes | Yes | Yes | Yes | Yes |
| IEEE 802.1p COS | Yes | Yes | Yes | Yes | Yes | Yes |
| Port-based VLAN | Yes | Yes | Yes | Yes | Yes | Yes |
| TOS | Yes | Yes | Yes | Yes | Yes | Yes |
| WRED (Weighted Deficit Round Robin) | Yes | Yes | Yes | Yes | Yes | Yes |
| Strict Priority Queue Technology | No | No | No | No | No | No |
| IEEE Network Protocols | ||||||
| IEEE Network Protocols |
|
|||||
| Management | ||||||
| Models: | GS305EP | GS305EPP | GS308EP | GS308EPP | GS316EP | GS316EPP |
| System Password | Yes | Yes | Yes | Yes | Yes | Yes |
| Web browserbased management GUI | Yes | Yes | Yes | Yes | Yes | Yes |
| PC Utility | No | No | No | No | No | No |
| Port Mirroring | Yes | Yes | Yes | Yes | Yes | Yes |
| Max number of source ports allowed (one-to-one port mirroring) | 1 | 1 | 1 | 1 | 1 | 1 |
| Many-to-one Port Mirroring | Yes | Yes | Yes | Yes | Yes | Yes |
| Cable Test utility | Yes | Yes | Yes | Yes | Yes | Yes |
| FW Upgrade thru Plus Utility (TFTP) | No | No | No | No | No | No |
| Config Download (to Switch) thru Plus Utility | No | No | No | No | No | No |
| Config Upload (to Server) | Yes | Yes | Yes | Yes | Yes | Yes |
| LEDs | ||||||
| Per port | Speed, Link, Activity, PoE | |||||
| Per device | Power, System, PoE Max | |||||
| Physical Specifications | ||||||
| Models: | GS305EP | GS305EPP | GS308EP | GS308EPP | GS316EP | GS316EPP |
| Dimensions (W x D x H) | 158 x 101 x 27 mm (6.2 x 4.0 x 1.1 in) |
158 x 101 x 27 mm (6.2 x 4.0 x 1.1 in) |
158 x 101 x 27 mm (6.2 x 4.0 x 1.1 in) |
158 x 101 x 27 mm (6.2 x 4.0 x 1.1 in) |
286 x 102 x 27 mm (11.26 x 4.02 x 1.06 in) |
286 x 102 x 27 mm (11.26 x 4.02 x 1.06 in) |
| Weight | 0.39 kg (0.86 lb) | 0.40 kg (0.88 lb) | 0.49 kg (1.08 lb) | 0.49 kg (1.08 lb) | 0.883 kg (1.95 lb) | 0.883 kg (1.95 lb) |
| Environmental Specifications | ||||||
| Operating Temperature | 32° to 104°F (0° to 40°C) | |||||
| Operating Humidity | 90% maximum relative humidity, non-condensing | |||||
| Operating Altitude | 10,000 ft (3,000 m) maximum | |||||
| Storage Temperature | - 4° to 158°F (-20° to 70°C) | |||||
| Storage Humidity | 95% maximum relative humidity, non-condensing | |||||
| Storage Altitude | 10,000 ft (3,000 m) maximum | |||||
| Safety | ||||||
| Certifications |
|
|||||
| Warranty and Support | ||||||
| Hardware Warranty (All Except China/India) | 5-year warranty | |||||
| External Power Adapter Warranty | 2-year warranty | |||||
| Technical Support (online, phone) | 90 days free of Technical Support with registration | |||||
| ProSUPPORT OnCall 24x7 Service Plans | Category S1 PMB0S11- 10000S PMB0S31- 10000S PMB0S51- 10000S |
|||||
| Package Contents | ||||||
| All Models |
|
|||||

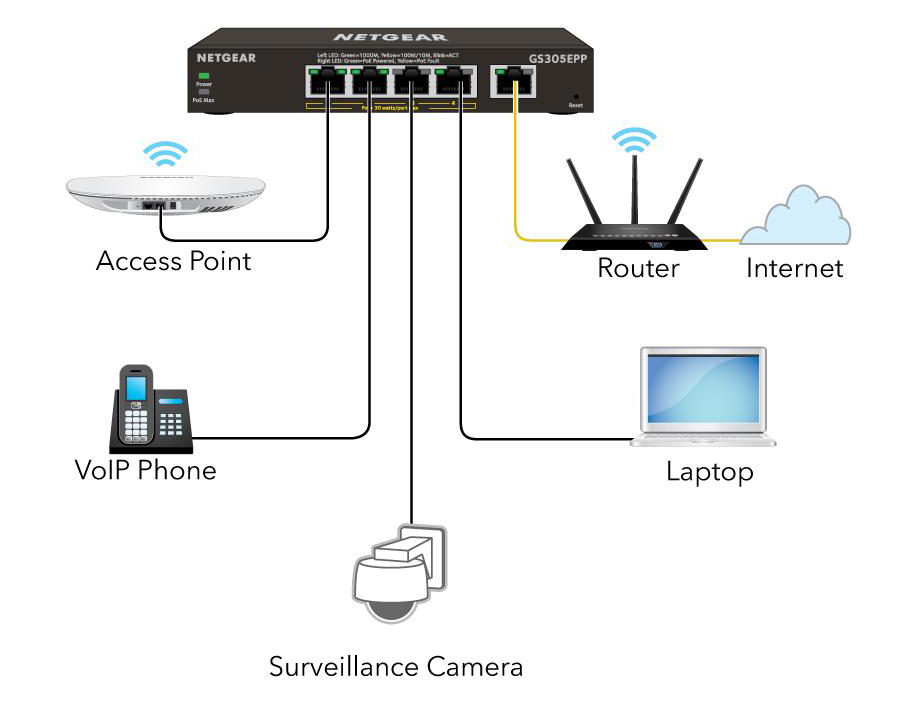

Network Diagram:
Small Office/Home Office Network Diagram
Cost-effective business networking management features: VLAN, QoS, advanced PoE controls, etc. Data security and network separation to safeguard your business.
Advanced per port PoE control (including power allocation override) and remote enable/disable/power cycle Plus switch that now provides PoE+ to power devices such as wireless APs, IP cameras, VoIP phones, access-controlled security door locks or any other IoT PoE-powered devices.
Documentation:
Download the NETGEAR PoE+ Gigabit Ethernet Plus Switches Datasheet (PDF).
