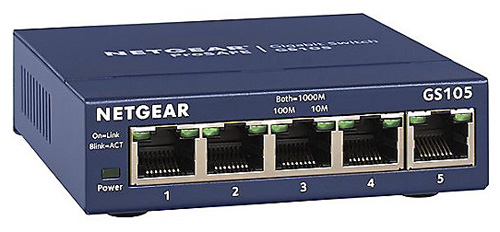

NETGEAR GS105
ProSafe 5-Port Gigabit Ethernet Desktop Switch

Netgear Products

NETGEAR Unmanaged Switches

NETGEAR ProSafe GS105 5-Port Gigabit Ethernet Desktop Switch

#GS105AU
Our Price: Request a Quote

Get a Quote

More pricing below, click here!

Please Note: All Prices are Inclusive of GST

Overview:

The NETGEAR® Gigabit Unmanaged Switch series helps businesses costeffectively expand their network to Gigabit speeds and higher port counts. The GS105, GS108, and GS108PP Gigabit Ethernet switches come with 5 and 8 Gigabit copper ports in a desktop metal case and are wall-mountable. These switches are energy efficient, built to last, and rigorously tested to provide the reliability businesses need. 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

Plug and Play

The standards-based ProSAFE Gigabit switches senses and adjusts for network speed and cabling type automatically. Easily integrates into your existing Ethernet network - no matter if it is running at 10/100Mbps or Gigabit speed
Simple set up with no software or configuration needed
Front panel LEDs keep you informed of power status, link speed and link activities

Traffic Prioritization

Prioritize mission-critical applications such as voice and video Support IEEE 802.1 p and DSCP-based QoS for delivering data based on priority and type

High Quality and Reliable Performance

Superior network performance at non-blocking rate delivers true Gigabit speed with no compromise
Durable metal case and long product life (shown by MTBF numbers)

Lifetime Warranty*

Industry's leading lifetime warranty, not only on hardware but also include lifetime online support as well as next-business day (NBD) replacement support, providing customers peace-of-mind using NETGEAR switches in their network.

Energy Efficient

GS105, GS108, and GS108PP support the latest Energy Efficient Ethernet (IEEE 802.3az) standard, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected. It can further save energy when a short cable (<100m) is used. Energy savings lead directly to cost savings in operation.

Features:

Product Features:

Provides maximum performance, connecting up to 10x faster than Fast Ethernet
Makes it simple to combine Fast Ethernet and Gigabit devices in your network
Incorporates Plug-and-Play ease of use

Gigabit Power, 10/100 Simplicity

Connects up to 10x faster than Fast Ethernet for maximum performance†
Simple to combine Fast Ethernet and Gigabit devices in your network
NETGEAR Green features provide energy savings
Plug-and-play installation delivers ease of use

Features

ProSafe 5- and 8-port Gigabit Desktop Switches connect your network with the dual advantages of performance and convenience
Fast, auto-switching Ethernet connection integrates 10, 100, and 1000 Mbps devices into your network
Supports Windows and Macintosh platforms
LEDs make it easy to monitor link, speed, and activity
AutoUplink technology automatically adjusts for two common types of cables
Compact metal case for desktop or wall mounting

NETGEAR Green

Up to 60% lower power consumption
Auto power-down mode saves energy when port is unused
Efficient Energy Star compliant power supply
Packaging manufactured with at least 80% recycled materials

Specifications:

NETGEAR GS105 Specifications
Product Specification	5 Gigabit ports 2K Max MAC entries 128KB Buffer size Energy Efficient Enthernet (IEEE 802.3az complaint)
Performance Specification	Forwarding modes: Store-and-forward Bandwidth: 10 Gbps Jumbo frame support: Up to 9K packet size Acoustic noise (ANSI-S10.12): 0 dB Mean Time Between Failures (MTBF): 3,197,945
Quality of Service (QoS)	DSCP IEEE 802.1p COS WRED (Weighted Deficit Round Robin) Queue WRR Ratio
IEEE Network Protocols	IEEE 802.3 Ethernet: IEEE 802.1p Class of Service IEEE 802.3ab 1000BASE-T: IEEE 802.3x full-duplex flow control
Miscellaneous Features	IEEE 802.3AZ (Energy Efficient Ethernet)
LEDs	Per port: Speed, Link, Activity Per device: Power Status
Physical Specifications	Dimensions (w x d x h): 94 x 100 x 27 mm (3.7 x 3.9 x 1.1 in) Weight: 0.26 kg (0.57 lb)
Power Consumption (when all ports used, line-rate traffic and max PoE)	Worst case, all ports used, line-rate traffic, max PoE: 2.7w
Environmental Specifications	Operating Temperature: 32° to 122°F (0° to 50°C) Storage Temperature: - 4° to 158°F (-20° to 70°C) Operating Humidity: 90% maximum relative humidity, non-condensing Storage Humidity: 95% maximum relative humidity, non-condensing Operating Altitude: 10,000 ft (3,000 m) maximum Storage Altitude: 10,000 ft (3,000 m) maximum
Electromagnetic Emissions and Immunity	Certifications Class (including but not limited to CE mark, commercial, FCC Part 15, VCCI, EN55022 (CISPR 22), C-Tick, EN50082-1, EN55024, CCC)
Safety Certifications	CE mark, commercial CSA certified (CSA 22.2 #950) UL listed (UL 1950)/cUL IEC 950/EN 60950
Warranty	Hardware Warranty: Lifetime on switch and 2-year on power adapter Live Chat Support: Lifetime Next Business Day Replacement: Lifetime
Package Contents	ProSafe 5-port Gigabit Ethernet Desktop Switch AC adapter Installation guide

*Free basic installation support provided for 90 days from date of purchase. Advanced product features and configurations are not included in free basic installation support; optional premium support available.

Diagram:

NETGEAR GS108 Diagram

Documentation:

Download the NETGEAR GS105, GS108 and GS108PP Datasheet (PDF).
